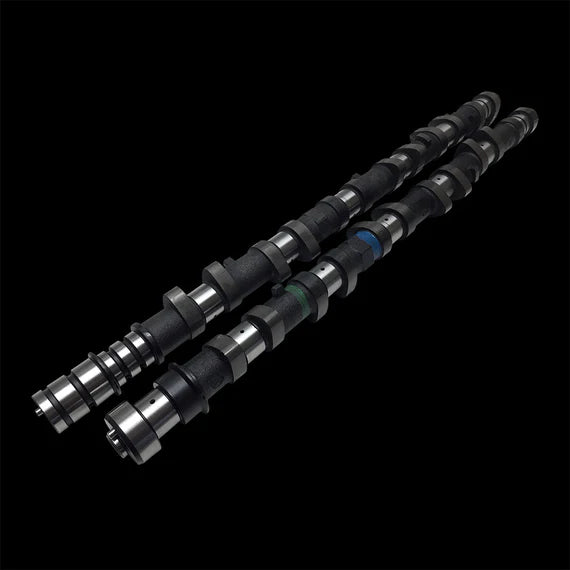

Toyota 2JZGE w/VVTi Stage 2 Camshafts - Street/Strip Spec
Part Number: BC0311
Brian Crower BC0311 Stage 2 camshafts are a street/strip profile developed for Toyota/Lexus 2JZ-GE VVT-i engines. The matched intake and exhaust profiles use 264° advertised duration, 218° duration at 0.050-inch lift, and 0.344-inch / 8.74 mm valve lift on both cams.
Brian Crower describes BC0311 as a plug-and-play, all-purpose specification with short duration for good street manners and a slight lope at idle. The profile is intended to add breathing capacity without moving to the longer-duration, higher-lift Stage 3 and Stage 3+ combinations, making it well suited to performance street and street/strip 2JZ-GE VVT-i builds.
Key Features
- Stage 2 street/strip camshaft set for Toyota/Lexus 2JZ-GE VVT-i applications
- 264° intake / 264° exhaust advertised duration
- 218° intake / 218° exhaust duration at 0.050-inch lift
- 0.344-inch / 8.74 mm intake and exhaust valve lift
- Designed for the factory VVT-i intake-cam architecture
- Short-duration profile intended to retain good street manners with a mild lope at idle
- Brian Crower lists the profile as compatible with OEM valve springs
Kit Includes
- Brian Crower BC0311 intake camshaft
- Brian Crower BC0311 exhaust camshaft
Technical Specifications
- Engine family: Toyota/Lexus 2JZ-GE VVT-i
- Stage: Stage 2 Street/Strip
- Advertised duration: 264° intake / 264° exhaust
- Duration @ 0.050-inch cam lift: 218° intake / 218° exhaust
- Valve lift: 0.344 in / 8.74 mm intake and exhaust
- Rocker ratio: 1:1
- Intake centerline: 110°
- Exhaust centerline: 118°
- Lobe separation angle: 114°
- Cold valve clearance: 0.008 in / 0.203 mm intake; 0.010 in / 0.254 mm exhaust
- Bucket diameter: 1.200 in
- Intake timing @ 0.050-inch valve lift: opens 1° ATDC; closes 39° ABDC
- Exhaust timing @ 0.050-inch valve lift: opens 47° BBDC; closes 9° BTDC
Application Notes
- Brian Crower catalogs BC0311 specifically for the 2JZ-GE VVT-i engine family, including the 2001–2005 Lexus IS300 and 1998–2005 Lexus GS300 applications.
- This is a VVT-i-specific camshaft set and should not be treated as a substitute for Brian Crower’s non-VVT-i 2JZ camshaft profiles.
- Brian Crower states that OEM valve springs are acceptable with the BC0311 profile. The BC cam card separately lists BC0300 for applications up to 800 whp and BC0300HD or BC0310 for applications above 800 whp.
- Brian Crower specifies checking cam-gear bolt length against the installed cam gear thickness so the bolt does not bottom in the camshaft threads.
- Valve clearances should be checked and set during installation to the cam-card specification.
- Valve springs, retainers, cam gears, timing components, seals, gaskets, and installation hardware are not listed by Brian Crower as included with BC0311.
Emissions and Competition-Use Notice
Unless specifically identified as emissions-legal for the applicable vehicle and application, this product is intended for sanctioned competition, off-road, or other non-emissions-controlled use. Installation or use on an emissions-controlled vehicle operated on public roads may violate federal, state, or local law. The purchaser and installer are responsible for confirming and maintaining compliance with all applicable emissions and vehicle-use regulations.
