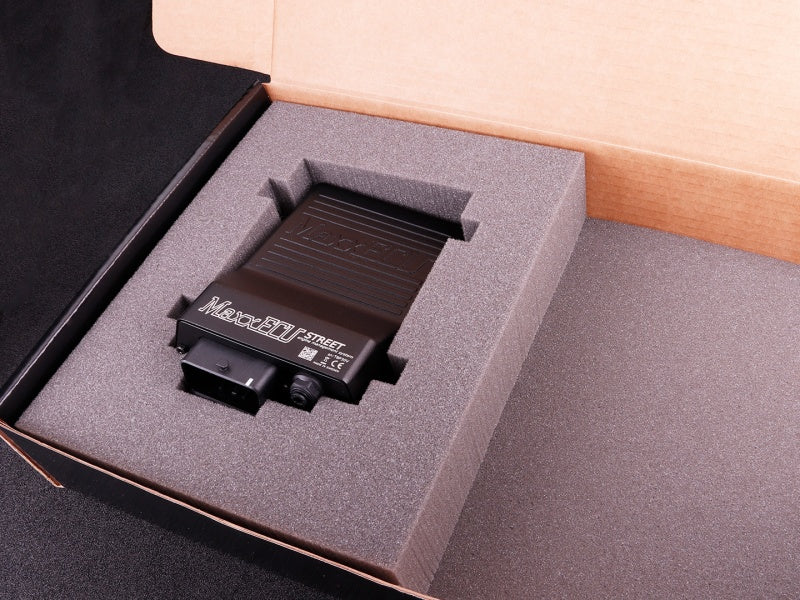

MaxxECU STREET Standalone ECU — Unit Only

MaxxECU STREET Standalone ECU — Unit Only

Part Number: 1814

The MaxxECU STREET is a universal standalone engine-management system for cable-throttle applications requiring up to six fully sequential fuel and ignition channels, integrated wideband-lambda control, flex-fuel capability, variable-cam control, boost control, CAN communications, transmission-control support, and practical supporting I/O.

STREET is the entry point into MaxxECU’s full-featured engine-management range. It provides the core functions needed for many four-, five-, and six-cylinder street and performance engines without the electronic-throttle motor drivers, peak-and-hold injector drivers, Bluetooth connectivity, knock inputs, EGT inputs, or expanded I/O of the SPORT and RACE ECUs.

This listing is for the MaxxECU STREET control unit only. It is intended for replacement installations, custom harness builders, or customers who already have the required STREET wiring and accessories.

Key Features

• Controls engines with up to six cylinders using fully sequential fuel injection and ignition
• Supports engines with up to 12 cylinders using non-sequential fuel and wasted-spark ignition strategies
• Six saturated injector outputs for high-impedance injectors
• Six ignition outputs for smart coils, CDI systems, or external ignition amplifiers
• Built-in wideband-lambda controller supporting Bosch LSU 4.2 and LSU 4.9 sensors
• Built-in 400 kPa absolute MAP sensor, suitable for approximately 3 bar or 43.5 psi of boost
• Dedicated throttle-position, coolant-temperature, and intake-air-temperature inputs
• Two additional temperature inputs
• Two additional 0–5 V analog inputs for pressure sensors and other analog devices
• Two digital inputs for switches or Hall-effect speed signals
• Four configurable general-purpose outputs
• CAN bus for supported transmissions, expansion modules, displays, OEM vehicle communications, and OBD-II data
• USB communication for MTune
• Internal data logging at up to 1,000 Hz
• Flex-fuel, variable-cam, boost-control, traction-control, launch-control, rolling-launch, anti-lag, nitrous-control, and engine-protection strategies
• MTune PC software for setup, tuning, diagnostics, and data analysis

ECU Specifications

Engine Support

• Supports manufacturer-approved 1- through 12-cylinder, two- or four-stroke engine configurations
• Up to six cylinders with fully sequential fuel injection and ignition
• Up to 12 cylinders using wasted-spark ignition
• Individual-cylinder fuel correction
• Injector staging
• Cable-throttle applications
• Variable valve timing, including supported VVT-i and VANOS applications
• Flex-fuel operation

Trigger and Sensor Inputs

• Two crankshaft and camshaft trigger inputs supporting VR or digital Hall-effect signals
• Automatic trigger-level detection
• Dedicated trigger-signal processing
• Dedicated intake-air-temperature input
• Dedicated coolant-temperature input
• Dedicated throttle-position input
• Two additional temperature inputs
• Two additional 0–5 V analog inputs
• Two digital inputs
• Built-in 400 kPa absolute MAP sensor
• Direct Bosch LSU 4.2 or LSU 4.9 wideband-sensor connection

Injector and Ignition Outputs

• Six saturated injector outputs intended for high-impedance injectors
• Six 5 V ignition outputs
• Ignition outputs require smart coils, an external ignition amplifier, or a compatible CDI system
• No internal high-current ignition amplifiers

General-Purpose Outputs

• Three configurable low-side outputs rated at up to 2 A each
• One configurable low-side output rated at up to 5 A
• Supports fuel-pump control, cooling fans, boost-control solenoids, idle-control valves, variable-cam solenoids, nitrous control, warning lights, shift lights, and other assigned functions

Communications and Logging

• Single CAN bus
• USB connection for MTune
• 8 MB internal logging memory
• Internal logging at up to 1,000 Hz
• PC logging at up to 20 Hz through USB
• CAN support for compatible transmission systems, MaxxECU expansion devices, OEM vehicle protocols, OBD-II data output, displays, and data devices

Electrical and Physical Specifications

• Supply-voltage range: 8–22 V
• ARM Cortex-M3 120 MHz main processor
• Fuel and ignition calculations updated 2,000 times per second
• Ignition resolution: 0.1 degree
• Injector-time resolution: 0.001 ms
• Aluminum enclosure
• Dimensions: 140 × 134 × 42 mm, including mounting points and excluding the connector
• Weight: approximately 520 g

Application Notes

• This listing is for the MaxxECU STREET control unit only.
• The flying-lead wiring harness, ECU connector and terminals, USB cable, MAP-sensor hose kit, wideband sensor, wideband connector, printed documentation, and other installation accessories are not included.
• A compatible MaxxECU STREET harness or connector and terminal set is required for installation.
• MaxxECU STREET does not include direct electronic-throttle motor outputs and should be treated as a cable-throttle ECU.
• MaxxECU STREET does not include built-in Bluetooth, knock-sensor inputs, or direct Type-K EGT inputs.
• The ECU supports Bosch LSU 4.2 and LSU 4.9 wideband sensors.
• The sensor type, connector, wiring, and MTune configuration must match.
• Full sequential operation is limited to engines with six cylinders or fewer.
• Engines with more than six cylinders require a different fuel and ignition strategy or a higher-channel MaxxECU model.
• The injector outputs are intended for high-impedance injectors.
• Low-impedance injectors require correctly sized external ballast resistors and must present an acceptable load to the ECU.
• The ignition outputs do not directly drive conventional high-current ignition coils.
• Use coils with built-in igniters, a compatible external ignition module, or a CDI system.
• Additional wiring is required to access the ECU’s CAN bus.
• Variable-cam control, transmission control, traction control, and other advanced functions depend on the available inputs, outputs, wiring, sensors, and channel allocation.
• Direct transmission control is available for selected GM 4L60E, 4L65E, 4L80E, 4L85E and Toyota A340E, A341E, and A650E applications.
• CAN-controlled transmission support includes selected BMW DCT, VAG DSG, and Gen 1 ZF 8HP applications.
• Gen 1 ZF 8HP control requires the appropriate MaxxECU transmission harness, compatible shifter hardware, transmission configuration, and CAN setup.

Emissions and Competition-Use Notice

Unless specifically identified as emissions-legal for the applicable vehicle and application, this product is intended for sanctioned competition, off-road, or other non-emissions-controlled use. Installation or use on an emissions-controlled vehicle operated on public roads may violate federal, state, or local law. The purchaser and installer are responsible for confirming and maintaining compliance with all applicable emissions and vehicle-use regulations.
