MaxxECU STREET 3-Meter Flying-Lead Wiring Harness

MaxxECU STREET 3-Meter Flying-Lead Wiring Harness

Part Number: 1763

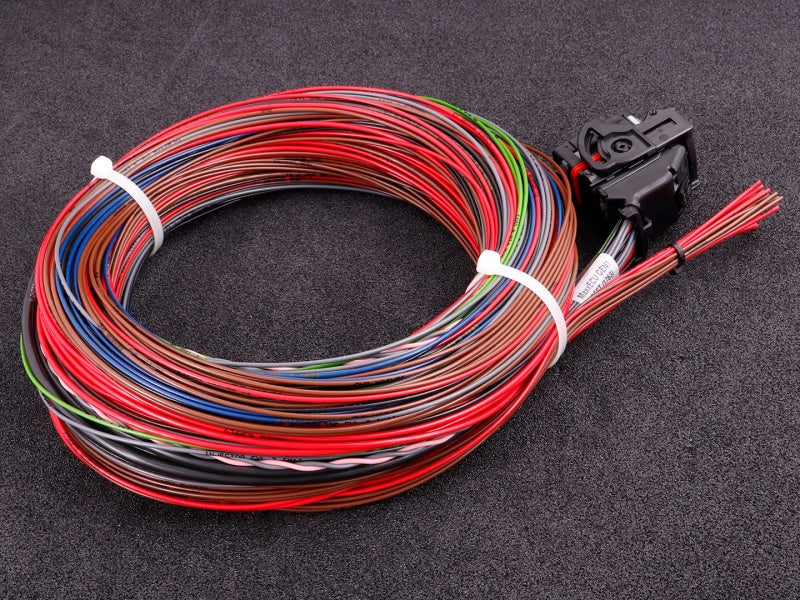

The MaxxECU STREET flying-lead harness provides the primary wiring interface between a MaxxECU STREET ECU and the engine, sensors, injectors, ignition system, power distribution, CAN devices, and supporting vehicle systems.

The ECU connector is pre-terminated, while the application side is left as labeled flying leads for custom routing and termination. Thin-wall automotive wire and printed circuit identification simplify installation, diagnosis, and future service.

Key Features

• Designed specifically for the MaxxECU STREET ECU
• Approximately 3-meter conductor length
• Pre-terminated ECU connector
• Flying-lead construction for custom engine and vehicle installations
• Thin-wall automotive-grade wire
• Printed circuit identification along the individual conductors
• Provides wiring for injector and ignition channels
• Provides wiring for crankshaft and camshaft trigger inputs
• Provides wiring for analog, temperature, and digital inputs
• Provides wiring for general-purpose outputs
• Provides CAN-bus wiring
• Provides integrated wideband-lambda wiring
• Provides ECU power and ground circuits

Application Notes

• This harness is intended for universal custom wiring and is not an application-specific terminated engine harness.
• Engine-side sensor, injector, ignition-coil, relay, power-distribution, and auxiliary connectors are not included unless specifically identified.
• The harness is designed for the MaxxECU STREET connector and pinout.
• It should not be assumed compatible with SPORT, RACE, PRO, GEN2, or other MaxxECU models.
• Harness construction varies by revision.
• REV1 harnesses use mostly 3-meter conductors and include a terminated GT150 auxiliary connector.
• REV2 harnesses use 3-meter conductors throughout and do not include a pre-attached GT150 auxiliary connector.
• Confirm the ECU hardware revision and use the corresponding current MaxxECU STREET wiring diagram before terminating the harness.
• Shielded trigger and wideband circuits must be terminated and grounded according to MaxxECU’s wiring documentation.
• Sensor grounds must remain separate from chassis ground and be connected only as specified by MaxxECU.
• Relays, fuses, wideband sensor connector, engine-side connectors, and other application-specific termination components are sold separately unless otherwise stated.

Emissions and Competition-Use Notice

Unless specifically identified as emissions-legal for the applicable vehicle and application, this product is intended for sanctioned competition, off-road, or other non-emissions-controlled use. Installation or use on an emissions-controlled vehicle operated on public roads may violate federal, state, or local law. The purchaser and installer are responsible for confirming and maintaining compliance with all applicable emissions and vehicle-use regulations.
