MaxxECU SPORT Standard ECU Package with 3-Meter Flying-Lead Wiring Harness
Part Number: 1916
The MaxxECU SPORT Standard package is a universal standalone engine-management system for custom installations requiring up to six sequential fuel and ignition channels, electronic-throttle control, integrated wideband capability, flex-fuel support, variable-cam control, CAN communications, and sufficient supporting I/O for a well-equipped street or performance application.
SPORT occupies the practical middle of the MaxxECU range. It provides substantially more control capability than a basic cable-throttle ECU without requiring the additional channels and specialized inputs of the larger RACE and PRO systems. It is particularly well suited to four-, five-, and six-cylinder engines using sequential injection, individual ignition coils, drive-by-wire throttle, variable valve timing, boost control, and CAN-controlled transmission hardware.
The Standard package includes the MaxxECU SPORT ECU, 3-meter flying-lead wiring harness, communication cable, MAP-sensor connection hardware, and installation documentation. Unlike the SPORT Premium package, it does not include a Bosch LSU wideband oxygen sensor or matching sensor connector.
Key Features
• Controls engines with up to six cylinders using fully sequential fuel injection and ignition
• Supports engines with up to 12 cylinders using non-sequential fuel and wasted-spark ignition strategies
• Six peak-and-hold injector outputs supporting high- or low-impedance injectors
• Six ignition outputs for smart coils, CDI systems, or external ignition amplifiers
• Integrated electronic-throttle control
• Built-in wideband lambda controller supporting Bosch LSU 4.2 and LSU 4.9 sensors
• Built-in 400 kPa absolute MAP sensor, suitable for approximately 3 bar or 43.5 psi of boost
• Dedicated TPS, coolant-temperature, and intake-air-temperature inputs
• Six additional 0–5 V analog inputs for pressure sensors and other analog devices
• Two additional temperature inputs and two digital inputs
• Seven configurable low-side general-purpose outputs
• CAN bus for supported transmissions, expansion modules, vehicle communications, and compatible displays
• Built-in Bluetooth and USB communication
• Internal data logging with up to 1,000 Hz logging speed
• Flex-fuel, variable-cam, boost-control, traction-control, launch-control, anti-lag, and engine-protection strategies
• MTune PC software for setup, tuning, diagnostics, and data analysis
Kit Includes

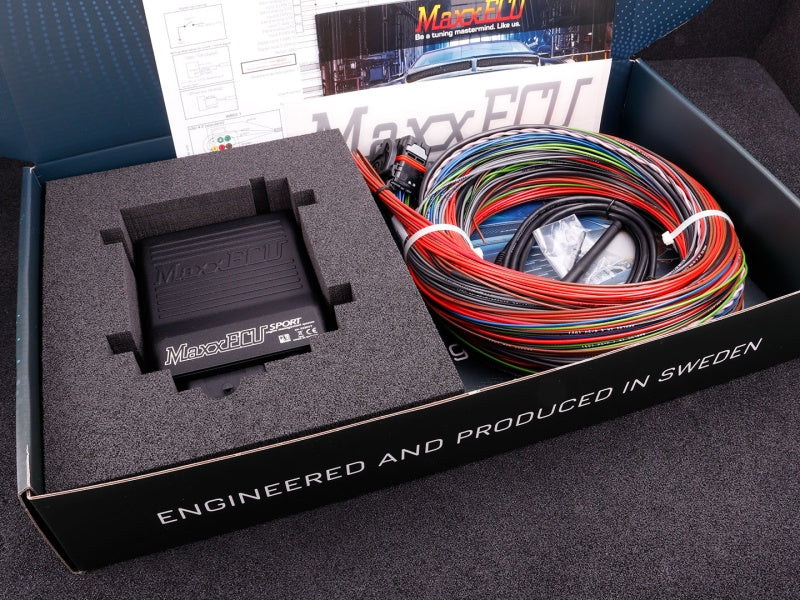

• MaxxECU SPORT engine-control unit
• 1915 — MaxxECU SPORT 3-meter flying-lead wiring harness
• ECU connector and terminal set
• USB communication cable
• Push-lock-to-barb adapter for the internal MAP-sensor connection
• MAP-sensor push-lock hose kit
• Printed wiring diagram
• Printed quick-start guide
ECU Specifications
Engine Support
• Supports 1- through 12-cylinder, two- or four-stroke engines
• Up to six cylinders with fully sequential fuel injection and ignition
• Up to 12 cylinders using wasted-spark ignition
• Individual-cylinder fuel correction
• Injector staging
• Variable valve timing, including supported VVTi and VANOS applications
• Electronic-throttle and cable-throttle applications
• Flex-fuel operation
Trigger and Sensor Inputs
• Two crankshaft and camshaft trigger inputs supporting VR or digital Hall-effect signals
• Automatic trigger-level detection
• Dedicated intake-air-temperature input
• Dedicated coolant-temperature input
• Dedicated throttle-position input
• Two additional temperature inputs
• Six additional 0–5 V analog inputs
• Two digital inputs
• Built-in 400 kPa absolute MAP sensor
• Direct Bosch LSU 4.2 or LSU 4.9 wideband-sensor connection
Injector and Ignition Outputs
• Six peak-and-hold injector outputs
• Up to 8 A per injector output
• Supports high- and low-impedance injectors
• Six 5 V ignition outputs
• Ignition outputs require smart coils, an external ignition amplifier, or a compatible CDI system
• No internal high-current ignition amplifiers
General-Purpose and Motor Outputs
• Seven configurable low-side general-purpose outputs
• Supports fuel pumps, cooling fans, boost-control solenoids, idle-control valves, nitrous control, warning lights, and shift lights
• Two bidirectional motor outputs for electronic-throttle or other supported motor-control functions
Communications and Logging
• Single CAN bus
• USB connection for MTune
• Built-in Bluetooth for compatible mobile-device communication
• 8 MB internal logging memory
• Internal logging at up to 1,000 Hz
• CAN support for compatible transmission systems, MaxxECU expansion devices, OEM vehicle protocols, OBD-II communication, displays, and data devices
Electrical and Physical Specifications
• Supply-voltage range: 8–22 V
• ARM Cortex-M3 120 MHz processor
• Fuel and ignition calculations updated 2,000 times per second
• Ignition resolution: 0.1 degree
• Injector-time resolution: 0.001 ms
• Aluminum enclosure
• Dimensions: 140 × 134 × 42 mm, including mounting points and excluding the connector
• Weight: approximately 590 g
Application Notes
• This is a universal flying-lead ECU package, not an application-specific terminated engine harness.
• The included SPORT harness uses approximately 3-meter conductors for custom routing and termination.
• This Standard package does not include a Bosch LSU wideband oxygen sensor or matching sensor connector.
• The SPORT ECU supports Bosch LSU 4.2 and LSU 4.9 sensors.
• The installed sensor, connector, wiring, and MTune configuration must match.
• Full sequential operation is limited to engines with six cylinders or fewer.
• Engines with more than six cylinders require a different fuel and ignition strategy or a higher-channel MaxxECU model.
• The ignition outputs do not directly drive conventional high-current ignition coils.
• Use coils with built-in igniters, a compatible external ignition module, or a CDI system.
• Electronic-throttle operation requires a compatible throttle body, accelerator-pedal assembly, correct wiring, proper channel allocation, and application-specific MTune setup.
• Variable-cam control, transmission control, traction control, and other advanced functions depend on the available inputs, outputs, wiring, sensors, and configuration.
• Direct transmission control is available for selected GM 4L60E, 4L65E, 4L80E, 4L85E and Toyota A340E, A341E, and A650E applications.
• CAN-controlled transmission support includes selected BMW DCT, VAG DSG, and Gen 1 ZF 8HP applications.
• Gen 1 ZF 8HP control requires the appropriate MaxxECU transmission harness, compatible shifter hardware, transmission configuration, and CAN setup.
• MaxxECU SPORT does not include onboard knock-sensor inputs or direct Type-K EGT inputs.
