MaxxECU SPORT Premium ECU Package w/Harness & WBO

MaxxECU SPORT Premium ECU Package with Wiring Harness and Bosch LSU 4.2 Wideband Sensor

Part Number: 1917

The MaxxECU SPORT Premium package is a universal standalone engine-management system for custom installations requiring up to six sequential fuel and ignition channels, electronic-throttle control, integrated wideband lambda, flex-fuel capability, variable-cam control, CAN communications, and sufficient supporting I/O for a well-equipped street or performance application.

SPORT occupies the practical middle of the MaxxECU range. It provides substantially more control capability than a basic cable-throttle ECU without requiring the additional channels and specialized inputs of the larger RACE and PRO systems. It is particularly well suited to four-, five-, and six-cylinder engines using sequential injection, individual ignition coils, drive-by-wire throttle, variable valve timing, boost control, and CAN-controlled transmission hardware.

This Premium package includes the MaxxECU SPORT ECU, its 3-meter flying-lead wiring harness, installation accessories, and a genuine Bosch LSU 4.2 wideband oxygen sensor. It is intended for custom wiring and universal engine-management installations rather than direct replacement of an original vehicle ECU.

Key Features

• Controls engines with up to six cylinders using fully sequential fuel injection and ignition
• Supports engines with up to 12 cylinders using non-sequential fuel and wasted-spark ignition strategies
• Six peak-and-hold injector outputs supporting high- or low-impedance injectors
• Six ignition outputs for smart coils, CDI systems, or external ignition amplifiers
• Integrated electronic-throttle control
• Built-in wideband lambda controller supporting Bosch LSU 4.2 and LSU 4.9 sensors
• Genuine Bosch LSU 4.2 wideband sensor included with this package
• Built-in 400 kPa absolute MAP sensor, suitable for approximately 3 bar or 43.5 psi of boost
• Dedicated TPS, coolant-temperature, and intake-air-temperature inputs
• Six additional 0–5 V analog inputs for pressure sensors and other analog devices
• Two additional temperature inputs and two digital inputs
• Seven configurable low-side general-purpose outputs
• CAN bus for supported transmissions, expansion modules, vehicle communications, and compatible displays
• Built-in Bluetooth and USB communication
• Internal data logging with up to 1,000 Hz logging speed
• Flex-fuel, variable-cam, boost-control, traction-control, launch-control, anti-lag, and engine-protection strategies
• MTune PC software for setup, tuning, diagnostics, and data analysis

Kit Includes

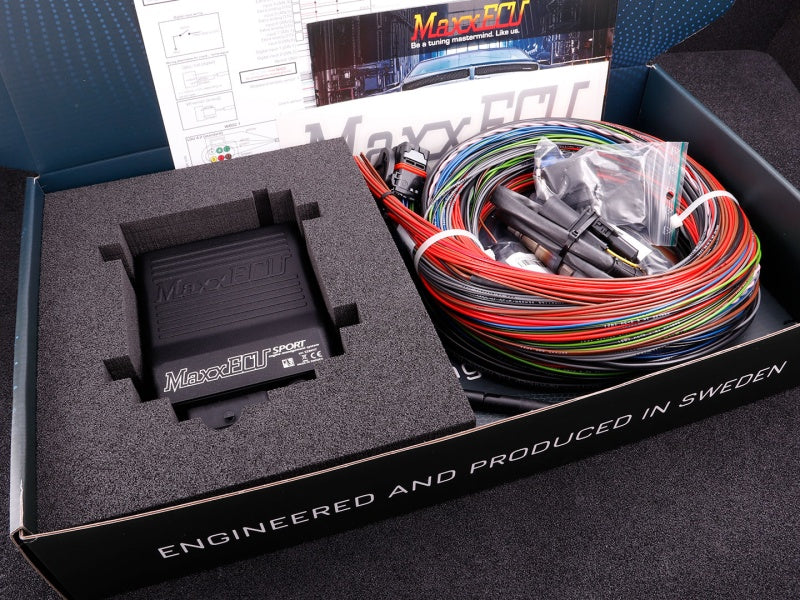

• MaxxECU SPORT engine-control unit
• 1915 — MaxxECU SPORT 3-meter flying-lead wiring harness
• 107 — Genuine Bosch LSU 4.2 wideband oxygen sensor, Bosch 0 258 007 057
• Bosch LSU 4.2 sensor connector
• ECU connector and terminals
• USB communication cable
• Bluetooth antenna
• Push-lock MAP-sensor adapter
• MAP-sensor hose kit
• Printed wiring diagram
• Printed quick-start guide

ECU Specifications

Engine Support

• Supports 1- through 12-cylinder, two- or four-stroke engines
• Up to six cylinders with fully sequential fuel injection and ignition
• Up to 12 cylinders using wasted-spark ignition
• Individual cylinder fuel correction
• Injector staging
• Variable valve timing, including supported VVTi and VANOS applications
• Electronic-throttle and cable-throttle applications
• Flex-fuel operation

Trigger and Sensor Inputs

• Two crankshaft/camshaft trigger inputs:
  • VR or digital Hall-effect signal support
  • Automatic trigger-level detection
• Dedicated intake-air-temperature input
• Dedicated coolant-temperature input
• Dedicated throttle-position input
• Two additional temperature inputs
• Six additional 0–5 V analog inputs
• Two digital inputs
• Built-in 400 kPa absolute MAP sensor
• Direct Bosch LSU 4.2 or LSU 4.9 wideband-sensor connection

Injector and Ignition Outputs

• Six peak-and-hold injector outputs
• Up to 8 A per injector output
• Supports high- and low-impedance injectors
• Six 5 V ignition outputs
• Ignition outputs require smart coils, an external ignition amplifier, or a compatible CDI system
• No internal ignition amplifiers

General-Purpose and Motor Outputs

• Seven configurable low-side general-purpose outputs
• Suitable for functions including:
  • Fuel-pump control
  • Cooling fans
  • Boost-control solenoids
  • Idle-control valves
  • Nitrous control
  • Warning lights
  • Shift lights
• Two bidirectional motor outputs for electronic-throttle or other supported motor-control functions

Communications and Logging

• Single CAN bus
• USB connection for MTune
• Built-in Bluetooth for compatible mobile-device communication
• 8 MB internal logging memory
• Internal logging at up to 1,000 Hz
• CAN support for compatible:
  • Transmission-control systems
  • MaxxECU expansion devices
  • OEM vehicle CAN protocols
  • OBD-II communication
  • Displays and data devices

Electrical and Physical Specifications

• Supply-voltage range: 8–22 V
• ARM Cortex-M3 120 MHz processor
• Fuel and ignition calculations updated 2,000 times per second
• Ignition resolution: 0.1 degree
• Injector-time resolution: 0.001 ms
• Aluminum enclosure
• Dimensions: 140 × 134 × 42 mm, including mounting points and excluding the connector
• Weight: approximately 590 g

Application Notes

• This is a universal flying-lead ECU package. It is not supplied as an application-specific, terminated engine harness.
• The included SPORT harness uses approximately 3-meter conductors for custom routing and termination.
• Full sequential operation is limited to engines with six cylinders or fewer. Engines with more than six cylinders require a different fuel and ignition channel strategy or a higher-channel MaxxECU model.
• The ignition outputs do not directly drive conventional high-current ignition coils. Use coils with built-in igniters, a compatible external ignition module, or a CDI system.
• This package includes a Bosch LSU 4.2 sensor. Although the ECU also supports LSU 4.9 sensors, the sensor type, connector, wiring, and MTune configuration must match.
• Electronic-throttle operation requires a compatible throttle body, accelerator-pedal assembly, correct wiring, proper channel allocation, and application-specific setup in MTune.
• Variable-cam control, transmission control, traction control, and other advanced functions depend on the application’s available inputs, outputs, wiring, sensors, and configuration.
• Supported direct-control automatic transmissions include selected GM 4L60E/4L65E, 4L80E/4L85E, and Toyota A340E/A341E/A650E applications.
• Supported CAN-controlled transmission applications include selected BMW DCT, VAG DSG, and Gen 1 ZF 8HP systems.
• Gen 1 ZF 8HP control requires the appropriate MaxxECU transmission harness, compatible shifter hardware, transmission configuration, and CAN setup. These components are sold separately.
• MaxxECU SPORT does not include onboard knock-sensor inputs or direct Type-K EGT inputs. External modules or signal conditioners are required where those inputs are needed.

Emissions and Competition-Use Notice

Unless specifically identified as emissions-legal for the applicable vehicle and application, this product is intended for sanctioned competition, off-road, or other non-emissions-controlled use. Installation or use on an emissions-controlled vehicle operated on public roads may violate federal, state, or local law. The purchaser and installer are responsible for confirming and maintaining compliance with all applicable emissions and vehicle-use regulations.
