MaxxECU RACE Standard ECU Package w/Main Flying-Lead Wiring Harness

MaxxECU RACE Standard ECU Package with Flying-Lead Wiring Harness

Part Number: 1817

The MaxxECU RACE Standard package combines the RACE standalone engine-control unit with its primary flying-lead wiring harness and installation accessories. It supports up to eight cylinders with fully sequential fuel injection and ignition, making it well suited to V8 engines and more complex four-, five-, and six-cylinder combinations requiring additional injector, ignition, sensor, auxiliary-control, and transmission functions.

The RACE ECU includes an integrated wideband controller, internal 400 kPa MAP sensor, peak-and-hold injector drivers, CAN communications, internal logging, Bluetooth connectivity, flex-fuel support, variable-cam control, and extensive engine-protection and power-management functions.

This Standard package includes the Connector 1 flying-lead harness. It does not include the Connector 2 harness, Bosch wideband oxygen sensor, or matching wideband connector. The optional Connector 2 harness is required to access the RACE ECU’s electronic-throttle motor outputs, dual knock inputs, eight EGT channels, and several additional inputs and outputs.

Key Features

• Up to eight cylinders with fully sequential fuel injection and ignition
• Up to 12 cylinders using manufacturer-supported wasted-spark strategies
• Eight peak-and-hold injector outputs for high- or low-impedance injectors
• Eight ignition outputs for smart coils, CDI systems, or external ignition amplifiers
• Integrated wideband lambda controller supporting Bosch LSU 4.2 and LSU 4.9 sensors
• Built-in 400 kPa absolute MAP sensor, suitable for approximately 3 bar or 43.5 psi of boost
• Two crankshaft and camshaft trigger inputs supporting VR or digital signals
• Dedicated intake-air-temperature, coolant-temperature, and throttle-position inputs
• Additional analog, temperature, and digital inputs
• Nine configurable low-side general-purpose outputs
• CAN bus for supported transmissions, expansion modules, displays, OEM vehicle communications, and OBD-II
• Built-in Bluetooth and USB communication
• Internal data logging at up to 1,000 Hz
• Flex-fuel, variable-cam, boost-control, traction-control, launch-control, anti-lag, nitrous-control, and engine-protection strategies
• MTune PC software for setup, tuning, diagnostics, and data analysis

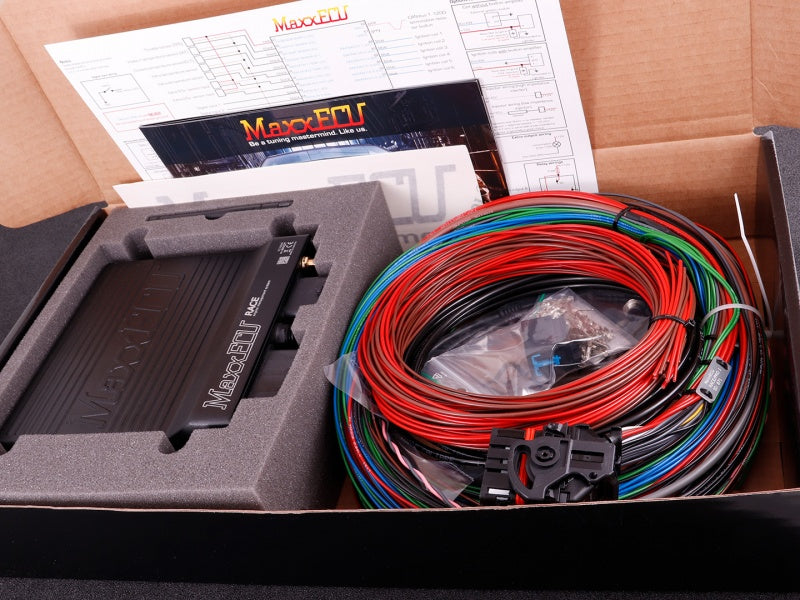

Kit Includes

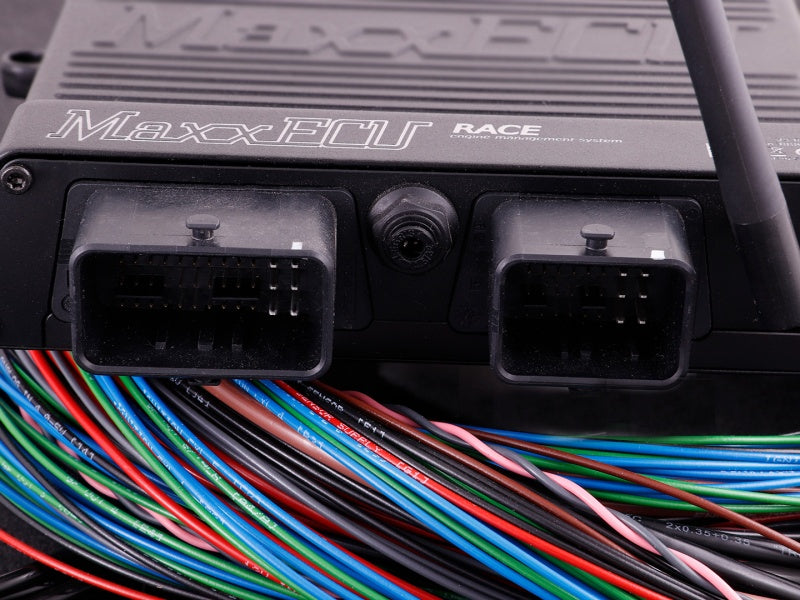

• 1783 — MaxxECU RACE engine-control unit
• 871 — MaxxECU V1/RACE/PRO flying-lead wiring harness for ECU Connector 1
• 949 — MaxxECU Bluetooth mobile antenna
• 924 — MaxxECU USB PC communication cable, 1.5 meters
• 928 — MaxxECU internal MAP-sensor hose and fitting kit
• 1052 — MaxxECU auxiliary installation cable
• 1235 — MaxxECU stickers, quantity two
• 1911 — Printed MaxxECU RACE wiring diagram
• 1852 — MaxxECU English quick-start guide

ECU Specifications

Engine Support

• Manufacturer-supported 1- through 12-cylinder, two- or four-stroke engine configurations
• Up to eight cylinders with fully sequential fuel injection and ignition
• Up to 12 cylinders using wasted-spark ignition
• Individual-cylinder fuel correction
• Injector staging
• Electronic- or cable-throttle applications
• Variable valve timing, including supported VVTi and VANOS applications
• Flex-fuel operation

Trigger and Sensor Inputs

• Two primary trigger inputs supporting VR or digital Hall-effect signals
• Automatic trigger-level detection and dedicated trigger-signal processing
• Dedicated intake-air-temperature input
• Dedicated coolant-temperature input
• Dedicated throttle-position input
• Two additional temperature inputs
• Six additional 0–5 V analog inputs
• Four additional digital inputs supporting VR, Hall-effect, or switch signals
• Two knock-sensor inputs
• Eight Type-K or Type-N thermocouple inputs
• Built-in 400 kPa absolute MAP sensor
• Direct Bosch LSU 4.2 or LSU 4.9 wideband-sensor connection

Injector and Ignition Outputs

• Eight peak-and-hold injector outputs
• Up to 8 A per injector output
• Supports one or two high- or low-impedance injectors per output
• Eight 5 V ignition outputs
• Requires smart coils, an external ignition amplifier, or a compatible CDI system
• No internal high-current ignition amplifiers

General-Purpose Outputs

• Eight configurable low-side outputs rated at up to 2 A
• One configurable low-side output rated at up to 5 A
• Supports fuel pumps, cooling fans, boost-control solenoids, idle valves, variable-cam solenoids, nitrous control, warning lights, and shift lights

Functions Requiring the Optional Connector 2 Harness

Product ID 1787 is required to connect the following RACE ECU functions:

• Electronic-throttle motor outputs
• Two knock-sensor inputs
• Eight Type-K or Type-N EGT inputs
• Analog inputs AIN 5–8
• Digital inputs DIN 4 and DIN 5
• High-side outputs GPO 15 and GPO 16
• Bidirectional motor outputs GPO 11–14

Communications and Logging

• Single CAN bus
• USB connection for MTune
• Built-in Bluetooth for compatible mobile-device communication
• 8 MB internal logging memory
• Internal logging at up to 1,000 Hz
• CAN support for compatible transmission controllers, MaxxECU expansion devices, OEM vehicle protocols, OBD-II communication, displays, and data devices

Electrical and Physical Specifications

• Supply-voltage range: 8–22 V
• ARM Cortex-M3 120 MHz main processor
• Separate processors for trigger, injector, and knock-signal processing
• Fuel and ignition calculations updated 2,000 times per second
• Ignition resolution: 0.1 degree
• Injector-time resolution: 0.001 ms
• Aluminum enclosure
• Dimensions: 155 × 195 × 40 mm, including mounting points and excluding connectors
• Weight: approximately 880 g

Application Notes

• This is a universal flying-lead ECU package, not an application-specific terminated engine harness.
• The included 871 harness connects to the RACE ECU’s primary connector and provides the principal engine-management wiring.
• The 1787 Connector 2 harness is not included.
• Connector 2 is required for electronic throttle, knock sensors, EGT inputs, AIN 5–8, DIN 4–5, high-side outputs, and motor outputs.
• A Bosch LSU wideband oxygen sensor and matching connector are not included.
• The ECU supports Bosch LSU 4.2 and LSU 4.9 sensors; the sensor type, connector, wiring, and MTune configuration must match.
• This package is best suited to cable-throttle installations or applications that do not require the functions assigned to Connector 2.
• For most drive-by-wire installations, add Product ID 1787 or select the RACE Premium package.
• The included RACE ECU uses the standard aluminum enclosure and is not identified as IP67 water-protected.
• The ignition outputs do not directly drive conventional high-current ignition coils.
• Direct transmission control is available for selected GM 4L60E, 4L65E, 4L80E, 4L85E and Toyota A340E, A341E, and A650E applications.
• CAN-controlled transmission support includes selected BMW DCT, VAG DSG, and Gen 1 ZF 8HP applications.
• Gen 1 ZF 8HP control requires the appropriate MaxxECU transmission harness, compatible shifter hardware, transmission configuration, and CAN setup.
• Available inputs and outputs must be allocated around the requirements of the engine, transmission, throttle, variable-cam, boost-control, and auxiliary systems.

Emissions and Competition-Use Notice

Unless specifically identified as emissions-legal for the applicable vehicle and application, this product is intended for sanctioned competition, off-road, or other non-emissions-controlled use. Installation or use on an emissions-controlled vehicle operated on public roads may violate federal, state, or local law. The purchaser and installer are responsible for confirming and maintaining compliance with all applicable emissions and vehicle-use regulations.
