MaxxECU GEN2 TRACK ECU Package with Bosch LSU 5.2 and Flying-Lead Installation Kit

MaxxECU GEN2 TRACK ECU Package with Bosch LSU 5.2 and Flying-Lead Installation Kit

Part Number: 2536

The MaxxECU GEN2 TRACK is a next-generation standalone engine-management system for applications requiring up to eight fully sequential fuel and ignition channels, electronic-throttle control, extensive configurable I/O, dual wideband-lambda capability, dual knock inputs, high-speed logging, dual CAN communication, and environmental sealing.

GEN2 TRACK is well suited to V8 engines and more complex four-, five-, and six-cylinder applications where the additional inputs, outputs, communications capacity, and data logging justify moving beyond SPORT or the original RACE ECU. Its eight injector and eight ignition channels support fully sequential operation on engines with up to eight cylinders.

This package includes the GEN2 TRACK ECU, its complete 3-meter flying-lead installation harness set, one Bosch LSU 5.2 wideband oxygen sensor, the matching sensor connector, communication hardware, and the principal accessories required for a universal installation. Although the ECU supports two onboard wideband-lambda channels, this SKU includes one sensor.

Key Features

• Up to eight cylinders with fully sequential fuel injection and ignition
• Up to 12 cylinders using manufacturer-supported wasted-spark strategies
• Eight peak-and-hold injector outputs for high- or low-impedance injectors
• Eight configurable ignition outputs with selectable 5 V, 12 V, or ground operation
• Integrated electronic-throttle control
• Dual onboard wideband-lambda controllers
• Native Bosch LSU 5.2 support, including ultra-rich methanol operation
• Bosch LSU 4.9 and LSU 4.2 compatibility with appropriate wiring and configuration
• One genuine Bosch LSU 5.2 wideband sensor included
• Dual knock-sensor inputs
• Six configurable pulse inputs supporting VR or Hall-effect signals
• Sixteen configurable analog inputs with selectable pull-ups
• Eight low-side general-purpose outputs
• Four 12 V high-side general-purpose outputs
• Four H-bridge outputs for electronic throttle and other supported motor-control functions
• Built-in 550 kPa absolute MAP sensor, suitable for approximately 4.5 bar or 65 psi of boost
• Dual CAN buses for transmissions, expansion modules, displays, OEM vehicle communication, and OBD-II
• Built-in Wi-Fi and Bluetooth communication
• Two USB-C ports for PC communication and tablet connection or charging
• 8 GB internal logging capacity with up to 1,000 Hz recording
• Internal 3-axis accelerometer with up to 8 G measurement range
• IP68-rated powder-coated aluminum enclosure
• Lua scripting for custom functions and CAN communications
• Flex-fuel, variable-cam, boost-control, traction-control, launch-control, anti-lag, nitrous-control, transmission-control, and engine-protection strategies
• MTune PC software and MDash Android compatibility

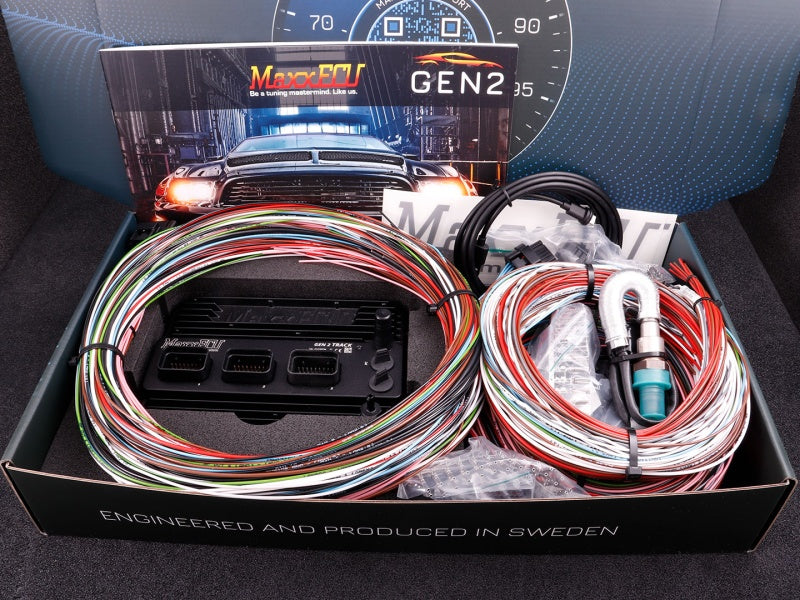

Kit Includes

• MaxxECU GEN2 TRACK engine-control unit with basic accessories
• 2356 — MaxxECU GEN2 3-meter flying-lead harness for ECU Connector 1
• 2357 — MaxxECU GEN2 TRACK/RACE 3-meter flying-lead harness for ECU Connector 2
• 2487 — MaxxECU GEN2 TRACK REV2 3-meter flying-lead harness for ECU Connector 3
• 2335 — Bosch LSU 5.2 wideband oxygen sensor, Bosch 0 258 037 010
• 1533 — Matching six-way Bosch LSU 5.2 sensor connector with terminals and seal
• MaxxECU GEN2 Wi-Fi and Bluetooth antenna
• USB-C-to-USB-A communication cable
• USB-C-to-USB-C communication cable
• Internal MAP-sensor hose and AN connection fittings
• Protective USB-C port covers
• Current GEN2 TRACK wiring and quick-start documentation

ECU Specifications

Engine Support

• Supports manufacturer-approved 1- through 12-cylinder, two- or four-stroke engine configurations
• Up to eight cylinders with fully sequential fuel injection and ignition
• Up to 12 cylinders using wasted-spark ignition
• Individual-cylinder fuel correction
• Injector staging
• Electronic-throttle and cable-throttle applications
• Variable valve timing, including supported VVTi and VANOS applications
• Flex-fuel operation
• Compatible with existing MaxxECU GEN1 tune files for supported upgrade applications

Trigger and Sensor Inputs

• Six configurable pulse inputs supporting VR or Hall-effect sensors
• Selectable pull-ups on all pulse inputs
• Selectable 5 V or 12 V sensor supply on two pulse inputs
• Sixteen configurable analog inputs
• Selectable pull-ups on analog inputs
• 2,000 Hz analog and digital input sampling
• Dual knock-sensor inputs
• Dual direct wideband-lambda inputs
• Bosch LSU 5.2, LSU 4.9, and LSU 4.2 wideband compatibility
• Built-in 550 kPa absolute MAP sensor
• User-serviceable MAP sensor with 1/8-inch BSP connection
• Built-in 3-axis accelerometer with up to 8 G range

Injector and Ignition Outputs

• Eight peak-and-hold injector outputs
• Supports high- and low-impedance injectors
• Injector outputs may also be assigned as general-purpose outputs
• Eight ignition outputs
• Selectable 5 V, 12 V, or ground operation
• Ignition outputs support smart coils, external ignition amplifiers, CDI systems, or compatible auxiliary functions
• Conventional high-current ignition coils require an appropriate external ignition amplifier

General-Purpose and Motor Outputs

• Eight configurable low-side outputs
• Maximum continuous load of 3 A per low-side output
• Four configurable 12 V high-side outputs
• Maximum continuous load of 5 A per high-side output
• Four configurable H-bridge outputs
• Selectable H-bridge peak-current control
• Up to 10 A continuous H-bridge output capability
• Supports electronic-throttle control, fuel pumps, cooling fans, boost-control solenoids, variable-cam solenoids, idle-control devices, nitrous systems, warning lights, and other assigned functions

Communications and Logging

• Dual CAN buses
• High-speed USB-C connection for MTune PC communication
• Second USB-C connection for compatible tablet charging and connection functions
• Built-in Wi-Fi communication with MTune
• Built-in Bluetooth connectivity with MDash
• 8 GB internal logging storage
• Internal logging at up to 1,000 Hz
• Logging support for more than 2,000 ECU channels
• Automatic logging activation based on user-defined conditions
• Lua scripting for custom strategies, virtual channels, output control, and CAN communications
• CAN support for compatible transmission systems, expansion modules, OEM vehicle protocols, OBD-II, displays, and data devices

Electrical and Physical Specifications

• Operating-voltage range: 6–22 V
• ARM dual-core processor
• Fuel and ignition calculations performed 3,000 times per second
• Ignition resolution: 0.1 degree
• Injector-time resolution: 0.001 ms
• All inputs and outputs protected against overvoltage, reverse polarity, and short circuits
• Automotive-grade Superseal 1.0 ECU connectors
• Black powder-coated aluminum enclosure
• IP68 environmental-protection rating
• Dimensions: 206 × 138 × 35 mm, including protruding connectors
• Weight: approximately 545 g

Application Notes

• This is a universal flying-lead ECU package, not an application-specific terminated engine harness.
• The complete installation harness is divided among the GEN2 TRACK ECU’s three Superseal connectors.
• Current REV2 packages use the TRACK-specific 2487 Connector 3 harness.
• GEN2 TRACK harnesses and connectors are not interchangeable with the original MaxxECU RACE, SPORT, STREET, or PRO harnesses.
• This package includes one Bosch LSU 5.2 wideband oxygen sensor.
• The ECU supports two onboard wideband channels; a second sensor and matching connection hardware are sold separately.
• Product ID 2537 is the corresponding GEN2 TRACK package supplied with two Bosch LSU 5.2 sensors.
• The included LSU 5.2 sensor is Bosch 0 258 037 010. MaxxECU does not currently identify Bosch 0 258 037 022 as supported.
• LSU 5.2, LSU 4.9, and LSU 4.2 sensors require the correct connector, wiring, and MTune configuration.
• Electronic-throttle operation requires a compatible throttle body, accelerator-pedal assembly, correct wiring, suitable channel allocation, and application-specific MTune setup.
• GEN2 TRACK does not include the eight direct Type-K EGT inputs provided by GEN2 RACE. External hardware or conditioned analog signals are required where direct thermocouple monitoring is needed.
• Direct transmission control is available for selected GM 4L60E, 4L65E, 4L80E, 4L85E and Toyota A340E, A341E, and A650E applications.
• CAN-controlled transmission support includes selected BMW DCT, VAG DSG, and Gen 1 ZF 8HP applications.
• Gen 1 ZF 8HP control requires the appropriate MaxxECU transmission harness, compatible shifter hardware, transmission configuration, and CAN setup.
• Maintaining the ECU’s environmental sealing requires correctly assembled Superseal connectors, seals, unused-cavity plugs, USB covers, and MAP fittings.
• Available inputs and outputs must be allocated around the requirements of the engine, transmission, electronic throttle, variable-cam system, boost control, vehicle integration, and auxiliary equipment.

Emissions and Competition-Use Notice

Unless specifically identified as emissions-legal for the applicable vehicle and application, this product is intended for sanctioned competition, off-road, or other non-emissions-controlled use. Installation or use on an emissions-controlled vehicle operated on public roads may violate federal, state, or local law. The purchaser and installer are responsible for confirming and maintaining compliance with all applicable emissions and vehicle-use regulations.
