MaxxECU GEN2 RACE ECU Package with Dual Bosch LSU 5.2 Wideband Sensors and Flying-Lead Installation Kit

MaxxECU GEN2 RACE ECU Package with Dual Bosch LSU 5.2 Wideband Sensors and Flying-Lead Installation Kit

Part Number: 2428

The MaxxECU GEN2 RACE is a next-generation standalone engine-management system for demanding applications requiring up to 12 fully sequential fuel and ignition channels, staged injection, electronic-throttle control, extensive configurable I/O, dual wideband-lambda capability, direct EGT monitoring, dual knock inputs, high-speed logging, dual CAN communication, and environmental sealing.

GEN2 RACE expands substantially beyond the original RACE ECU and GEN2 TRACK. Its 16 injector outputs and 12 ignition outputs support fully sequential control of engines with up to 12 cylinders while retaining additional injector channels for staged-injection configurations. Eight direct Type-K EGT inputs, 24 analog inputs, eight pulse inputs, dual wideband controllers, and extensive auxiliary outputs provide the channel capacity required for complex engine, transmission, and vehicle-control systems.

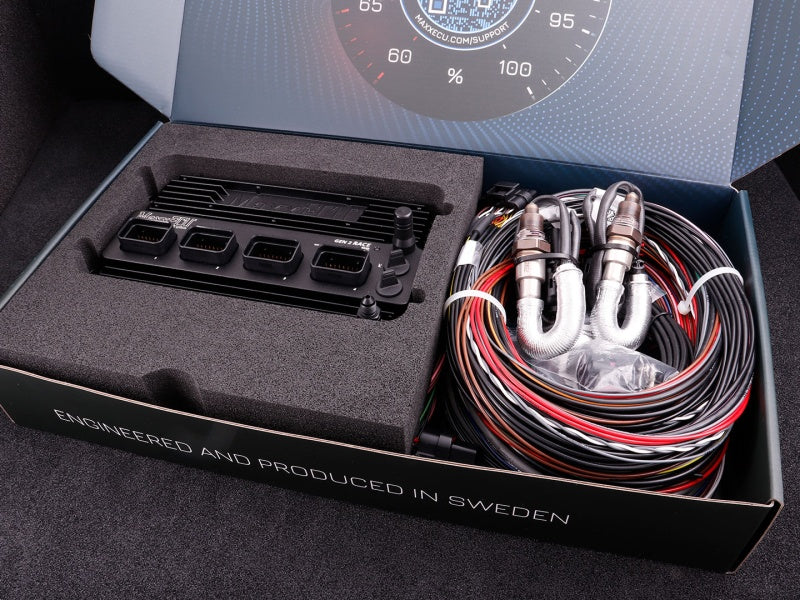

This package includes the GEN2 RACE ECU, all four 3-meter flying-lead harness sections, two genuine Bosch LSU 5.2 wideband oxygen sensors, two matching sensor connectors, communication cables, wireless antenna, MAP-sensor fittings, and installation documentation. The two included wideband sensors allow both onboard lambda channels to be used without purchasing a second sensor and connector separately.

Key Features

• Supports engines with up to 12 cylinders using fully sequential fuel injection and ignition
• Sixteen peak-and-hold injector outputs for high- or low-impedance injectors
• Twelve configurable ignition outputs with selectable 5 V, 12 V, or ground operation
• Supports staged injection and individual-cylinder fuel correction
• Integrated electronic-throttle control
• Dual onboard wideband-lambda controllers
• Two genuine Bosch LSU 5.2 wideband oxygen sensors included
• Native Bosch LSU 5.2 support, including ultra-rich methanol applications
• Compatible with Bosch LSU 4.9 and LSU 4.2 sensors using the correct wiring and configuration
• Eight direct Type-K EGT inputs
• Dual knock-sensor inputs
• Eight configurable pulse inputs supporting VR or Hall-effect signals
• Twenty-four configurable analog inputs with selectable pull-ups
• Eight configurable low-side general-purpose outputs
• Four configurable 12 V high-side general-purpose outputs
• Four configurable H-bridge outputs for electronic throttle and other motor-control functions
• Built-in 550 kPa absolute MAP sensor, suitable for approximately 4.5 bar or 65 psi of boost
• Dual CAN buses for transmissions, expansion modules, displays, OEM vehicle communication, and OBD-II
• Built-in Wi-Fi and Bluetooth communication
• Two USB-C ports for PC communication and compatible tablet connection or charging
• 16 GB internal logging capacity with recording at up to 1,000 Hz
• Internal 3-axis accelerometer with up to 8 G measurement range
• IP68-rated powder-coated aluminum enclosure
• Lua scripting for custom strategies, virtual channels, output control, and CAN communications
• Flex-fuel, variable-cam, boost-control, traction-control, launch-control, anti-lag, nitrous-control, transmission-control, and engine-protection strategies
• MTune PC software and MDash Android compatibility

Kit Includes

• MaxxECU GEN2 RACE engine-control unit
• 2356 — MaxxECU GEN2 3-meter flying-lead harness for ECU Connector 1
• 2357 — MaxxECU GEN2 TRACK/RACE 3-meter flying-lead harness for ECU Connector 2
• 2358 — MaxxECU GEN2 RACE 3-meter flying-lead harness for ECU Connector 3
• 2359 — MaxxECU GEN2 RACE 3-meter flying-lead harness for ECU Connector 4
• Two 2335 genuine Bosch LSU 5.2 wideband oxygen sensors, Bosch 0 258 037 010
• Two 1533 six-way Bosch LSU 4.9/5.2 sensor connectors with terminals and seals
• 2412 — MaxxECU GEN2 Wi-Fi and Bluetooth antenna
• 2413 — MaxxECU GEN2 USB-C-to-USB-A communication cable
• 2414 — MaxxECU GEN2 USB-C-to-USB-C communication cable
• 2363 — BSP 1/8-inch-to-AN-3 internal MAP-sensor fitting
• 2364 — BSP 1/8-inch internal MAP-sensor hose fitting
• Two protective USB-C port covers
• Printed GEN2 RACE wiring diagram and quick-start guide

ECU Specifications

Engine Support

• Supports manufacturer-approved 1- through 12-cylinder, two- or four-stroke engine configurations
• Up to 12 cylinders with fully sequential fuel injection and ignition
• Up to 12 cylinders using wasted-spark ignition
• Individual-cylinder fuel correction
• Injector staging
• Electronic-throttle and cable-throttle applications
• Variable valve timing, including supported VVT-i and VANOS applications
• Flex-fuel operation
• Compatible with existing MaxxECU GEN1 tune files for supported upgrade applications

Trigger and Sensor Inputs

• Eight configurable pulse inputs supporting VR or Hall-effect sensors
• Selectable pull-ups on all pulse inputs
• Selectable 5 V or 12 V sensor supply on two pulse inputs
• Twenty-four configurable analog inputs
• Selectable pull-ups on analog inputs
• Analog and digital input sampling at up to 2,000 Hz
• Dual knock-sensor inputs
• Eight direct Type-K EGT inputs
• EGT input sampling at up to 200 Hz
• Dual direct wideband-lambda inputs
• Bosch LSU 5.2, LSU 4.9, and LSU 4.2 wideband compatibility
• Built-in 550 kPa absolute MAP sensor
• User-serviceable MAP sensor with BSP 1/8-inch connection
• Built-in 3-axis accelerometer with up to 8 G range

Injector and Ignition Outputs

• Sixteen peak-and-hold injector outputs
• Supports high- and low-impedance injectors
• Injector outputs may also be assigned as general-purpose outputs
• Twelve ignition outputs
• Selectable 5 V, 12 V, or ground operation
• Ignition outputs support smart coils, external ignition amplifiers, CDI systems, or compatible auxiliary functions
• Conventional high-current ignition coils require an appropriate external ignition amplifier

General-Purpose and Motor Outputs

• Eight configurable low-side outputs
• Four configurable 12 V high-side outputs
• Four configurable H-bridge outputs
• Supports electronic-throttle control, fuel pumps, cooling fans, boost-control solenoids, variable-cam solenoids, idle-control devices, nitrous systems, warning lights, and other assigned functions

Communications and Logging

• Dual CAN buses
• High-speed USB-C connection for MTune PC communication
• Second USB-C connection for compatible tablet communication and charging
• Built-in Wi-Fi communication with MTune
• Built-in Bluetooth connectivity with MDash
• 16 GB internal logging storage
• Internal logging at up to 1,000 Hz
• Logging support for more than 2,000 ECU channels
• Automatic logging activation based on user-defined conditions
• Lua scripting for custom strategies, virtual channels, output control, and CAN communications
• CAN support for compatible transmission systems, expansion modules, OEM vehicle protocols, OBD-II, displays, and data devices

Electrical and Physical Specifications

• Operating-voltage range: 6–22 V
• ARM dual-core processor
• Fuel and ignition calculations performed 3,000 times per second
• Ignition resolution: 0.1 degree
• Injector-time resolution: 0.001 ms
• Inputs and outputs protected against overvoltage, reverse polarity, and short circuits
• Automotive-grade Superseal 1.0 ECU connectors
• Black powder-coated aluminum enclosure
• IP68 environmental-protection rating
• Dimensions: 240 × 138 × 35 mm, including protruding connectors
• Weight: approximately 700 g

Application Notes

• This is a universal flying-lead ECU package, not an application-specific terminated engine harness.
• The complete installation harness is divided among the GEN2 RACE ECU’s four Superseal connectors.
• All four 3-meter flying-lead harness sections are included.
• GEN2 RACE harnesses and connectors are not interchangeable with original RACE, SPORT, STREET, PRO, or GEN2 TRACK-specific Connector 3 harnesses.
• This package includes two Bosch LSU 5.2 wideband oxygen sensors and two matching connectors.
• Both onboard wideband-lambda channels can therefore be connected without purchasing an additional sensor kit.
• Product ID 2451 is the corresponding GEN2 RACE package supplied with one Bosch LSU 5.2 sensor.
• The included LSU 5.2 sensors are Bosch 0 258 037 010.
• MaxxECU does not currently identify Bosch LSU 5.2 sensor 0 258 037 022 as supported.
• LSU 5.2, LSU 4.9, and LSU 4.2 sensors require the correct connector, wiring, and MTune configuration.
• Type-K EGT probes are not included.
• Knock sensors are not included.
• Electronic-throttle operation requires a compatible throttle body, accelerator-pedal assembly, correct wiring, suitable channel allocation, and application-specific MTune setup.
• Direct transmission control is available for selected GM 4L60E, 4L65E, 4L80E, 4L85E and Toyota A340E, A341E, and A650E applications.
• CAN-controlled transmission support includes selected BMW DCT, VAG DSG, and Gen 1 ZF 8HP applications.
• Gen 1 ZF 8HP control requires the appropriate MaxxECU transmission harness, compatible shifter hardware, transmission configuration, and CAN setup.
• Maintaining the ECU’s environmental sealing requires correctly assembled Superseal connectors, seals, unused-cavity plugs, USB covers, and MAP fittings.
• Available inputs and outputs must be allocated around the requirements of the engine, transmission, electronic throttle, variable-cam system, boost control, vehicle integration, and auxiliary equipment.

Emissions and Competition-Use Notice

Unless specifically identified as emissions-legal for the applicable vehicle and application, this product is intended for sanctioned competition, off-road, or other non-emissions-controlled use. Installation or use on an emissions-controlled vehicle operated on public roads may violate federal, state, or local law. The purchaser and installer are responsible for confirming and maintaining compliance with all applicable emissions and vehicle-use regulations.
