Haltech uC-10 10-Inch Digital Dash

Part Number: HT-068000

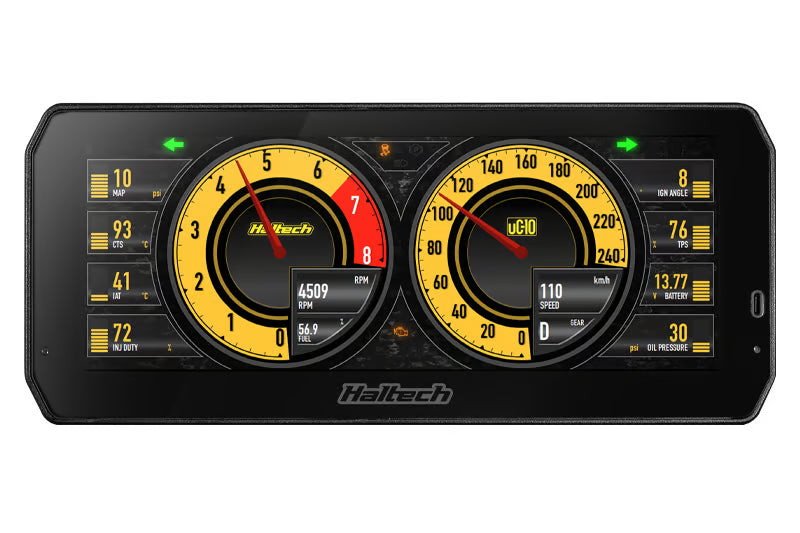

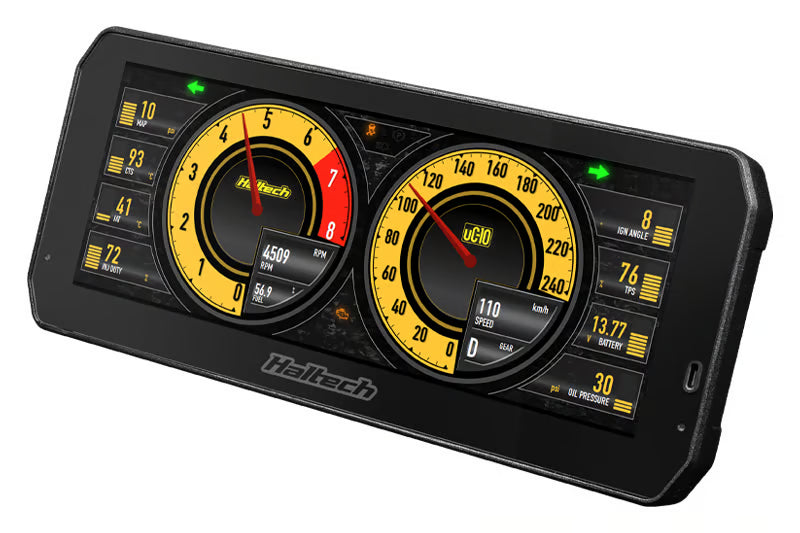

The Haltech uC-10 is a wide-format 10-inch digital dash designed to display, organize, and log engine and vehicle data from a Haltech ECU, supported third-party engine-management system, OBD-II network, or directly connected sensors.

Connected to a NEXUS Rebel LS or another current Haltech ECU through the Haltech CAN network, the uC-10 replaces a conventional gauge cluster with a bright, optically bonded display, configurable screen layouts, programmable warnings, shift lights, onboard data logging, Wi-Fi connectivity, and extensive user-definable inputs and outputs.

Its 1280 × 480 display provides substantially more horizontal screen area than a conventional 7-inch dash, making it particularly well suited to custom instrument panels and complete factory-cluster replacements. The uC-10 also includes a composite-video input for an optional reverse camera and a dedicated alternator-excite circuit for applications in which removing the original gauge cluster would otherwise interrupt the charging-system circuit.

Key Features

• 10-inch full-color, optically bonded TFT display
• 1280 × 480 screen resolution
• 600-plus-lumen display output
• Minimum 70-degree horizontal and vertical viewing angle
• Configurable through Haltech NSP software
• Up to 5 selectable screen layouts

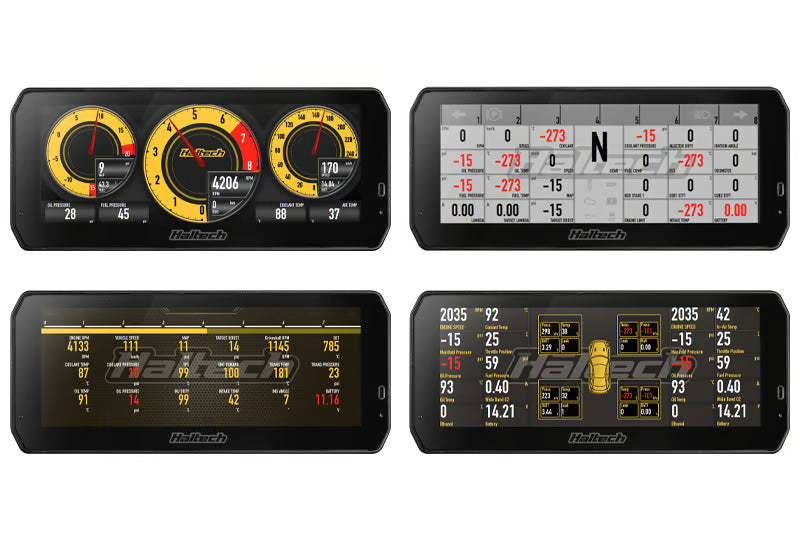

• User-configurable gauges, channels, labels, units, colors, and display ranges
• Separate day and night color configurations
• Automatic brightness control through 2 onboard ambient-light sensors
• 14 programmable RGB shift and warning LEDs
• Configurable alarms with on-screen messages
• 512 MB onboard looped data logging
• 6-digit odometer
• Integrated 2.4 GHz Wi-Fi
• USB-C connection for configuration and firmware updates
• Composite-video input for an optional reverse or backup camera
• 10 user-configurable analog-voltage inputs
• 4 user-configurable synchronized pulsed inputs
• 4 user-configurable digital pulsed outputs
• Dedicated wired tachometer input
• Dedicated alternator-excite output
• I/O sharing with compatible Haltech NEXUS and Elite ECUs
• Haltech CAN, OBD-II, and supported third-party ECU compatibility
• IP64 environmental protection

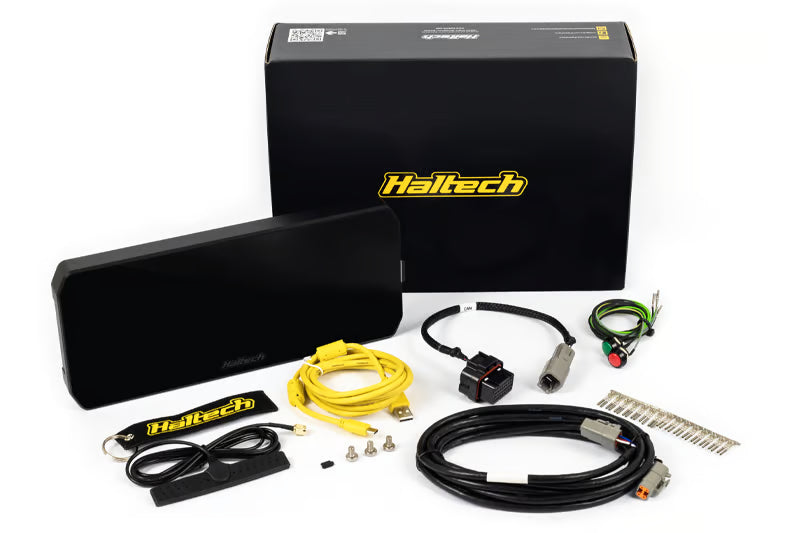

Kit Includes

• HT-068000 — Haltech uC-10 10-inch digital dash

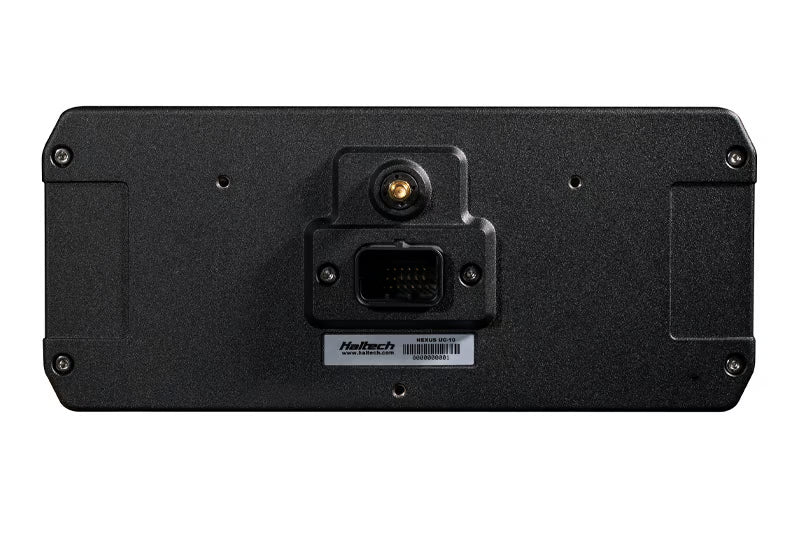

• 34-pin main connector and spare terminals
• 3.0 m (118 in.) DTM-4-to-DTM-4 Haltech CAN cable
• USB-A-to-USB-C communication cable
• USB-C dust cap
• 3 M5 × 8 mm mounting screws
• 2 momentary push-button switches
• Pre-terminated 800 mm (31.5 in.) 22 AWG button wiring
• Glass-mount 2.4 GHz Wi-Fi antenna
• Quick Start Guide
• Haltech stickers
• Haltech fabric keyring tag

Technical Specifications

• Display size:
  • 10 in.
• Display type:
  • Full-color, optically bonded TFT
• Resolution:
  • 1280 × 480
• Luminance:
  • More than 600 lumens
  • Dimmable
• Viewing angle:
  • Minimum 70 degrees horizontally and vertically
• Overall dimensions:
  • 11.46 × 4.96 × 1.02 in. (291.2 × 126.0 × 26.0 mm)
  • Dimensions exclude rear connectors
• Operating-voltage range:
  • 6.5–20.0 V
• Ambient operating-temperature range:
  • 14°F to 176°F (−10°C to 80°C)
• Environmental protection:
  • IP64
  • Dust-tight and protected against splashing water
• Onboard data-logging memory:
  • 512 MB
• Odometer:
  • 6 digits
• Shift and warning lights:
  • 14 programmable RGB LEDs
• CAN compatibility:
  • Haltech CAN
  • Supported OBD-II protocols
  • Supported third-party ECU protocols
• Configuration connections:
  • USB-C
  • 2.4 GHz Wi-Fi
• Main connector:
  • 34-pin AMP Superseal, Type 2 keyway
• Wi-Fi antenna connection:
  • Female RP-SMA
• Included CAN cable length:
  • 9.8 ft. (3.0 m)

Dash Inputs and Outputs

• 10 analog-voltage inputs
  • User-configurable
  • 0–5 V measurement range
  • Software-selectable 1 kΩ pull-up resistor to 5 V
  • Suitable for compatible pressure, temperature, position, fuel-level, and switch inputs
• AVI 1 dual pull-up capability
  • Software-selectable 240-ohm pull-up option
  • Intended to improve compatibility and usable voltage range with conventional resistance-based fuel-level senders
• 4 synchronized pulsed inputs
  • User-configurable
  • Supports frequency, duty-cycle, analog-voltage, and switched-signal measurement
  • Compatible with Hall-effect, optical, and reluctor sensors
  • Maximum input voltage of 25 V
  • Maximum measurable frequency of 15 kHz
• 4 digital pulsed outputs
  • User-configurable
  • Low-side switched
  • Maximum 3 A per output
  • Supports switched, frequency, and pulse-width-modulated operation
• 1 dedicated tachometer input
  • Supports digital square-wave tachometer signals
  • Supports ignition-coil-negative signals used with some distributors and external ignition modules
• 1 dedicated alternator-excite output
• 1 regulated 5 V sensor supply
• 1 dedicated 12 V auxiliary output
• 1 signal-ground connection
• 2 onboard ambient-light sensors

Camera Specifications

• Camera-input signal:
  • Composite video
• Supported video formats:
  • NTSC 720 × 480
  • PAL 720 × 576
• Image adjustment:
  • Mirroring
  • Rotation through 0, 90, 180, or 270 degrees
• Dedicated camera power output:
  • 12 V
  • Maximum 500 mA
• Compatible accessory:
  • HT-060400 — Haltech Reverse/Back-Up Camera Kit, sold separately
• Reverse-camera support requires uC-10 firmware version 2.29.x or later.

Application Notes

• The uC-10 connects directly to a compatible NEXUS or Elite ECU through the supplied DTM-4 Haltech CAN cable.
• In a typical Haltech installation, the DTM-4 CAN connection supplies switched power, ground, CAN High, and CAN Low to the dash.
• The connected ECU CAN channel must be configured for the Haltech CAN protocol. A dash connected to another CAN protocol may power up without receiving usable ECU data.
• When several Haltech CAN devices are installed, the uC-10 can connect through:
  • An available port on a Haltech CAN hub
  • An unused CAN port on a compatible WB1 or WB2 wideband controller
  • Another correctly configured connection on the Haltech CAN network
• Current Haltech NEXUS and Elite ECUs can transmit engine and vehicle channels directly to the uC-10 without duplicating sensors at the dash.
• Compatible Haltech ECU inputs and outputs can be shared with the uC-10, allowing the dash to function as an additional I/O expander.
• Haltech currently specifies the following minimum firmware versions for dash I/O sharing:
  • NEXUS ECU or VCU firmware 1.26.4 or later
  • Elite ECU firmware 3.11.0 or later
  • uC-10 firmware 2.26.3 or later
• I/O sharing is not supported with Haltech Platinum-series ECUs, although supported ECU data can still be displayed over CAN.
• Connecting the uC-10 to a Haltech Platinum ECU requires the HT-130040 DTM-4-to-8-pin Tyco CAN adapter, sold separately if not already supplied with the ECU.
• Direct OBD-II connection requires the optional HT-135003 OBD-II-to-DTM-4 CAN cable.
• The OBD-II adapter’s red power wire must be connected to switched ignition power because the vehicle’s OBD-II connector normally supplies constant battery voltage.
• Supported third-party ECU protocols include:
  • Hondata
  • Link G4 and selected G5 ECUs
  • MaxxECU
  • Microtech
  • MoTeC M1-series ECUs
  • MoTeC M400, M600, and M800 “Gold Box” ECUs
  • Syvecs
• Third-party ECU installation requires the correct CAN adapter harness and supported ECU configuration. Adapter harnesses are sold separately.
• The uC-10 can also be installed as a standalone dash using directly wired sensors and vehicle signals.
• Standalone installation requires the installer to wire power, ground, sensors, switches, speed input, and other required vehicle circuits through the supplied 34-pin connector. Sensors and a complete standalone harness are not included.
• The 10 analog inputs can be used for fuel level, temperatures, pressures, position sensors, warning switches, lighting signals, and other compatible 0–5 V or resistance-based inputs.
• Sensor calibration must match the exact sensor or sender connected to the dash.
• The 4 synchronized pulsed inputs can be used with compatible wheel-speed, vehicle-speed, driveshaft-speed, flex-fuel, GPS-speed, frequency-based, or reluctor-sensor signals.
• The digital pulsed outputs switch to ground when active and are limited to 3 A each.
• Loads exceeding 3 A must be controlled through an appropriately rated relay or external power-control device.
• The dedicated alternator-excite circuit can replace the warning-lamp or resistor circuit normally contained within a factory instrument cluster.
• The supplied momentary switches can be configured for screen navigation, alarm cancellation, or next-and-previous screen selection.
• Up to 5 screen layouts can be stored in the dash, with a selectable startup screen or recall of the last-used screen.
• The 512 MB logging memory operates as looped storage. Older log data is overwritten as new data is recorded after the available memory is filled.
• Wi-Fi communication requires firmware version 2.27.0 or later. Initial Wi-Fi configuration is completed through USB.
• The reverse-camera input accepts composite video rather than modern digital-video formats. Camera compatibility should be confirmed before using a third-party camera.
• The uC-10 does not include a dash bezel, molded panel, pedestal, or steering-column mount.
• Compatible mounting options include:
  • HT-060070 — iC-7/uC-10 standard dash mount
  • HT-060091 — uC-10 molded panel mount
• The IP64 rating does not make the dash waterproof or submersible. The rear connector, wiring, and USB connection should be protected from standing water and concentrated heat.
