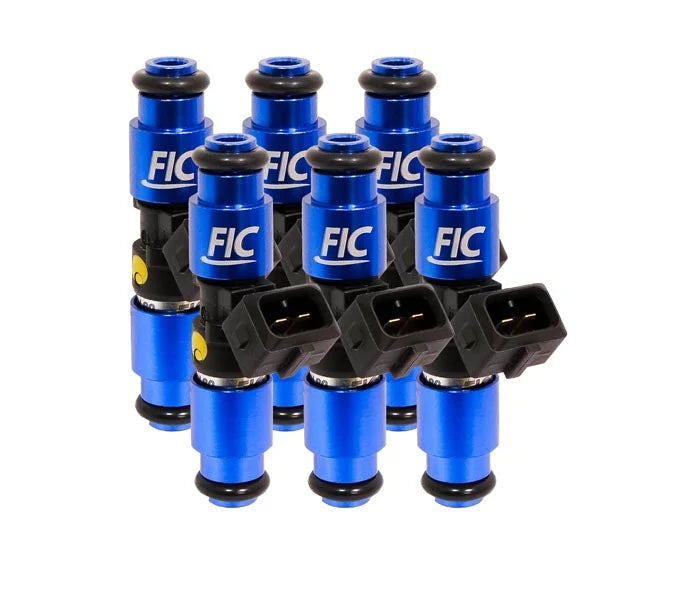

Fuel Injector Clinic 1650cc High-Z Injector Set — Toyota Supra 2JZ-GTE
Part Number: IS145-1650H & PGTJETR6Q
Fuel Injector Clinic’s IS145-1650H is a six-injector, top-feed set for Toyota Supra 2JZ-GTE applications using an appropriate top-feed fuel-rail conversion. Each injector is a 1650 cc/min saturated/high-impedance ball-and-seat unit, providing substantial fuel capacity while retaining the short-pulse-width control required for good idle and low-load drivability.
FIC individually serial numbers and matches the injectors using its Data Match Technology. The supplied data documents injector flow and latency characteristics for calibration rather than relying on a generic nominal injector value. FIC rates its injectors at 43.5 psi (3 bar) differential fuel pressure and 90°F fuel temperature using CF-16B calibration fluid.
The 1650cc injector uses stainless-alloy internal valve construction and is compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE-oxygenated race fuels. This makes the 1650H particularly useful in high-output gasoline and ethanol applications where a large injector is required without moving to a low-impedance injector.
Key Features
- Set of six 1650 cc/min Fuel Injector Clinic injectors
- Saturated / high-impedance electrical design
- Ball-and-seat injector construction
- Top-feed configuration
- Jetronic/EV1 electrical connector
- FIC Data Match Technology with individual injector serial numbers
- Matched flow and latency data supplied with the set
- Compatible with gasoline, E85, and FIC-approved oxygenated race fuels
- Stainless-alloy valve construction for broad fuel compatibility
- Designed to maintain strong short-pulse-width control and street drivability despite the high flow rate
- Covered by Fuel Injector Clinic’s lifetime warranty against defects in original manufacture
Kit Includes
- Six Fuel Injector Clinic 1650cc high-impedance injectors
- Application-specific injector seals / O-rings
- Individual injector Data Match information
- Selected wiring connection option:
- PGTJETR6Q — Set of six Jetronic quick-release connector pigtails, or
- PADPJtoD6 — Set of six plug-and-play Jetronic/EV1-to-Denso harness adapters
Technical Specifications
Injector Set
- Application: Toyota Supra 2JZ-GTE with compatible top-feed fuel-rail conversion
- Quantity: 6 injectors
- Nominal flow rate: 1650 cc/min at 43.5 psi / 3 bar differential fuel pressure
- Approximate mass flow: 160 lb/hr at 43.5 psi / 3 bar
- Impedance: High / saturated
- Injector type: Ball and seat
- Feed style: Top feed
- Electrical connector: Jetronic/EV1
- Nominal injector height: 60 mm
- Upper inlet seal: 14 mm O-ring configuration
Fuel Compatibility
- Pump gasoline
- E85
- Q16
- VP Import
- FTW
- Other FIC-approved MTBE-oxygenated race fuels
Testing and Calibration
- Rated at 43.5 psi / 3 bar differential fuel pressure
- Rated at 90°F fuel temperature using CF-16B calibration fluid
- Each injector is individually serial numbered
- Matched flow and individual offset/latency information is supplied by FIC
- FIC publishes injector characterization data for several common aftermarket ECU platforms
Wiring Options
- PGTJETR6Q — Solder-In Pigtails: Included connection option for replacing the original harness-side injector connectors with Jetronic/EV1 quick-release connectors.
- PADPJtoD6 — Plug-and-Play Harness Adapters: Optional adapter set connecting the Jetronic/EV1 injector to the factory Denso-style harness connector without cutting or soldering the injector harness.
Application Notes
- IS145-series injectors are intended for the Supra 2JZ-GTE top-feed conversion architecture. They are not a direct replacement for the original side-feed injectors in the stock 2JZ-GTE fuel rail.
- Use a fuel rail and manifold-bung arrangement designed for the IS145-series injector geometry. Fuel Injector Clinic offers dedicated Supra 2JZ-GTE top-feed rail systems for this injector family.
- When converting a factory low-impedance Supra injector circuit to these high-impedance injectors, the factory injector resistor-pack circuit must be addressed appropriately. FIC offers a Supra resistor-pack delete plug for this purpose.
- The plug-and-play wiring adapters address only the electrical connector interface; they do not replace the required mechanical top-feed fuel-rail conversion.
- Final injector characterization, fuel-pressure configuration, dead-time data, and ECU setup should use the current Fuel Injector Clinic data supplied for the exact injector set and ECU platform.
- For aftermarket rails or nonstandard intake-manifold configurations, verify injector height, seal diameter, and installed geometry before ordering.
