Fuel Injector Clinic 1650cc High-Z Custom Injector Set — 8-Cylinder
Part Numbers: ISC-1650H-8 & PGTJETR8Q
The Fuel Injector Clinic ISC-1650H-8 is a configurable set of eight 1650cc high-impedance fuel injectors for custom top-feed applications. Unlike FIC’s vehicle-specific injector sets, this custom set allows the injector height and upper and lower O-ring diameters to be selected to match the fuel rail, intake manifold, and injector pocket dimensions of the application.
The set includes eight solder-in injector pigtails. For the standard 1650cc Jetronic/EV1 electrical configuration, the included eight-piece pigtail set is Fuel Injector Clinic part number PGTJETR8Q. Each injector is individually serial numbered and the set is matched using FIC’s Data Match Technology.
FIC rates each 1650cc injector at 1650 cc/min at 43.5 psi / 3 bar. The 1650cc high-impedance injector uses stainless-alloy valve construction and is compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Its high-impedance design avoids the need for a separate peak-and-hold injector driver while retaining the short-pulse-width control required for stable idle and drivability when the ECU is configured with the correct injector characterization data.
Key Features
- Custom-configurable set of eight Fuel Injector Clinic 1650cc high-impedance injectors
- Part numbers: ISC-1650H-8 & PGTJETR8Q
- 1650 cc/min per injector at 43.5 psi / 3 bar
- Saturated / high-impedance electrical design
- Selectable injector height
- Selectable upper O-ring diameter
- Selectable lower O-ring diameter
- Includes eight Jetronic quick-release solder-in pigtails, PGTJETR8Q
- Stainless-alloy valve construction
- Compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Fuel Injector Clinic Data Match Technology
- Each injector individually serial numbered
- Data Match Sheet with flow-matching and latency information included
- Short-pulse-width control intended to support stable idle and drivability with correct ECU data
- Fuel Injector Clinic lifetime warranty against defects in original manufacture
Kit Includes

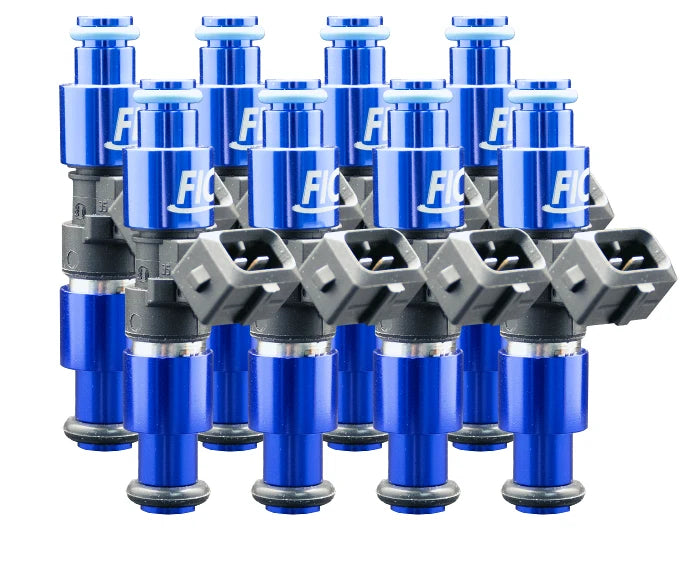

- Eight Fuel Injector Clinic 1650cc high-impedance custom injectors, ISC-1650H-8
- Eight Jetronic quick-release solder-in pigtails, PGTJETR8Q
- O-rings in the selected upper and lower diameters
- Individual injector serial numbers
- Fuel Injector Clinic Data Match Sheet with flow-matching and latency information
Technical Specifications
Flow and Test Conditions
- Nominal injector size: 1650 cc/min
- Flow rating: 1650 cc/min per injector at 43.5 psi / 3 bar
- FIC test pressure: 43.5 psi / 3 bar
- FIC test fuel temperature: 90°F
- FIC calibration fluid: CF-16B
Available Injector Heights
- 64mm nominal height, 60mm measured O-ring to O-ring
- 53mm nominal height, 48mm measured O-ring to O-ring
- 38mm nominal height, 34mm measured O-ring to O-ring
Available Upper O-Ring Diameters
- 11mm
- 14mm
Available Lower O-Ring Diameters
- 11mm
- 14mm
- 15mm
- 16mm
- 21mm
Electrical and Mechanical Configuration
- Injector type: saturated / high impedance
- Quantity: eight injectors
- Electrical connection: Jetronic / EV1
- Included pigtail set: PGTJETR8Q
- Configuration is selected by injector height, upper O-ring diameter, and lower O-ring diameter
- This is a custom-fit injector set rather than a vehicle-specific drop-in application
Fuel Compatibility
- Pump gasoline
- E85
- Q16
- VP Import
- FTW
- Other MTBE oxygenated racing fuels identified as compatible by Fuel Injector Clinic for its 1650cc high-impedance injector
Injector Matching and ECU Data
- Matched using Fuel Injector Clinic Data Match Technology
- Each injector individually serial numbered
- Data Match Sheet supplied with matching and latency information
- Correct injector characterization must be entered into the ECU for proper fueling, idle quality, transient response, and drivability
Configuration Notes
- Measure the required injector height from O-ring to O-ring and confirm both upper and lower injector-bore diameters before ordering.
- Fuel Injector Clinic offers 64mm, 53mm, and 38mm nominal-height configurations with multiple upper and lower O-ring combinations.
- FIC’s current default catalog configuration is shown as product code 1650-64-11-14-8, representing an eight-injector 1650cc set in the corresponding dimensional configuration.
- The custom injector set includes solder-in pigtails. The standard eight-piece Jetronic quick-release pigtail set is PGTJETR8Q.
- Because ISC-1650H-8 is a custom-fit product, do not order solely by engine family or vehicle model. Injector length and both O-ring interfaces must be verified against the actual fuel rail and intake manifold.
- Use FIC-supplied injector characterization and latency data rather than generic 1650cc injector values.
- Fuel pumps, fuel-pressure regulator, fuel rails, filters, feed and return plumbing, ECU, ECU configuration, and tuning are not included.
- This product is a port-fuel-injector set and is not a direct-injection injector replacement.
Emissions and Competition-Use Notice
Performance fuel-system modifications may affect vehicle emissions compliance and road-use legality. The purchaser and installer are responsible for determining that the completed vehicle complies with all applicable emissions, registration, fuel-system, and competition-use requirements.
