Fuel Injector Clinic 1200cc-D High-Z Injector Set — 2007–2013 GM 4.8L / 5.3L / 6.0L Truck

Fuel Injector Clinic 1200cc-D High-Z Injector Set — 2007–2013 GM 4.8L / 5.3L / 6.0L Truck

Part Number: IS305-1200H-D

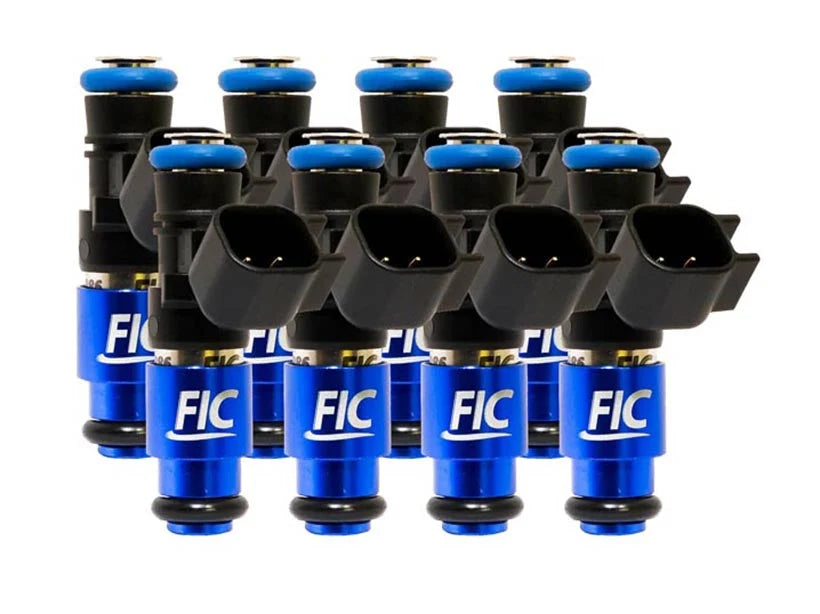

Fuel Injector Clinic IS305-1200H-D is an eight-injector high-impedance set developed for 2007–2013 GM truck applications using 4.8L, 5.3L, and 6.0L engines. The 1200cc-D injectors flow 1200 cc/min / 110 lb/hr at 43.5 psi differential fuel pressure and 1350 cc/min / 130 lb/hr at the OE 58 psi / 4 bar fuel pressure.

Each injector set is individually serial numbered and matched using Fuel Injector Clinic's Data Match Technology, with the resulting flow and latency information supplied on the included Data Match Sheet. FIC also provides plug-and-play GM ECU injector data for supported tuning platforms, helping provide predictable fueling behavior from short-pulse-width operation through high-load use.

Key Features

• Eight matched 1200cc-D high-impedance injectors
• 1200 cc/min / 110 lb/hr flow at 43.5 psi / 3 bar
• 1350 cc/min / 130 lb/hr flow at the OE 58 psi / 4 bar fuel pressure
• Designed for 2007–2013 GM 4.8L, 5.3L, and 6.0L truck applications
• Fuel Injector Clinic Data Match Technology
• Each injector individually serial numbered
• Matched flow and latency data supplied with the set
• Plug-and-play GM ECU injector data available from FIC
• Compatible with gasoline and E85
• Application-specific O-rings included
• Fuel-rail spacers supplied where required for the listed application
• Covered by Fuel Injector Clinic's lifetime warranty against defects in original manufacture

Kit Includes

• Eight Fuel Injector Clinic 1200cc-D high-impedance injectors
• Application-specific injector O-rings
• Fuel-rail spacers for installations requiring them
• Fuel Injector Clinic Data Match Sheet with individual injector flow and latency information

Technical Specifications

• Application: 2007–2013 GM 4.8L / 5.3L / 6.0L truck engines
• Injector quantity: 8
• Injector family: FIC 1200cc-D
• Flow @ 43.5 psi / 3 bar: 1200 cc/min / 110 lb/hr
• Flow @ 58 psi / 4 bar: 1350 cc/min / 130 lb/hr
• Impedance: High / saturated
• FIC rating pressure: 43.5 psi / 3 bar
• FIC test fuel temperature: 90°F
• FIC calibration fluid: CF-16B
• Fuel compatibility: Gasoline and E85

Flow Rating

Application Notes

• FIC catalogs IS305-1200H-D specifically for 2007–2013 GM truck applications with 4.8L, 5.3L, and 6.0L engines.
• This is the distinct FIC 1200cc-D product, not the standard IS305-1200H & PGTJETR8Q injector-and-pigtail configuration.
• Fuel Injector Clinic does not list a separate pigtail or plug-and-play adapter part number as part of the current IS305-1200H-D product code.
• Fuel-rail spacers may be required depending on the application; FIC states that the required spacers are provided.
• FIC supplies the O-rings required for the listed factory application. Aftermarket rails, manifolds, or unusual installations should be checked for dimensional compatibility before ordering.
• Fuel pumps, regulator, fuel rails, filters, plumbing, ECU, sensors, and ECU configuration/tuning are not included.

Emissions and Competition-Use Notice

Installation or use on an emissions-controlled vehicle may be restricted by federal, state, or local law. The purchaser and installer are responsible for confirming that the completed vehicle and application comply with all applicable emissions and vehicle-use requirements.
