BorgWarner AirWerks S363 SX-E 63/68 Turbocharger — Select Turbine Housing

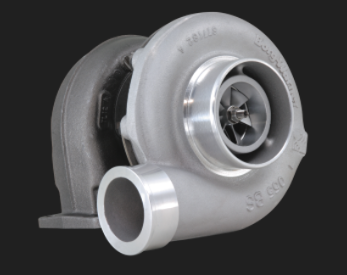

BorgWarner AirWerks S363 SX-E 63/68 Turbocharger

Part Number: 13009097006

The BorgWarner AirWerks S363 SX-E combines a 62.99 mm forged-milled compressor wheel with a 76.20/67.56 mm turbine wheel in a durable, serviceable journal-bearing turbocharger platform. Its S300SX-E architecture provides substantial airflow, flexible turbine-housing selection, and straightforward external-wastegate integration for high-performance street, restomod, and competition applications.

This product is configured by selecting one of the compatible genuine BorgWarner T4 turbine housings listed below. When a turbine housing is selected, the package includes the 13009097006 supercore, the selected BorgWarner turbine housing, and the turbine-housing mounting hardware supplied with the supercore.

A supercore-only option is also available for customers who already have a compatible BorgWarner 76/68 mm S300 turbine housing.

The 0.88 A/R open-flow housing is the recommended default for conventional non-divided exhaust manifolds. The 0.91 and 1.00 A/R twin-flow housings are intended for properly divided manifolds that preserve exhaust-pulse separation to the turbine inlet.

Key Features

• 62.99 mm forged-milled compressor-wheel inducer
• 87.37 mm compressor-wheel outside diameter
• 76.20 mm turbine-wheel outside diameter with 67.56 mm exducer
• Serviceable twin hydrodynamic journal-bearing center section
• 360-degree thrust-bearing assembly
• Extended-tip compressor-wheel technology
• Integrated compressor-speed-sensor port
• Pre-machined compressor-cover boost-reference port
• Clockable compressor cover and turbine housing
• Genuine BorgWarner open-flow and twin-flow T4 turbine-housing options
• External-wastegate configuration
• Replaceable BorgWarner service components

Kit Includes

• 13009097006 — BorgWarner AirWerks S363 SX-E 63/68 supercore
• Selected BorgWarner turbine housing when a housed configuration is ordered
• BorgWarner turbine-housing clamp plates
• BorgWarner turbine-housing cap screws and mounting hardware supplied with the supercore

Turbocharger Specifications

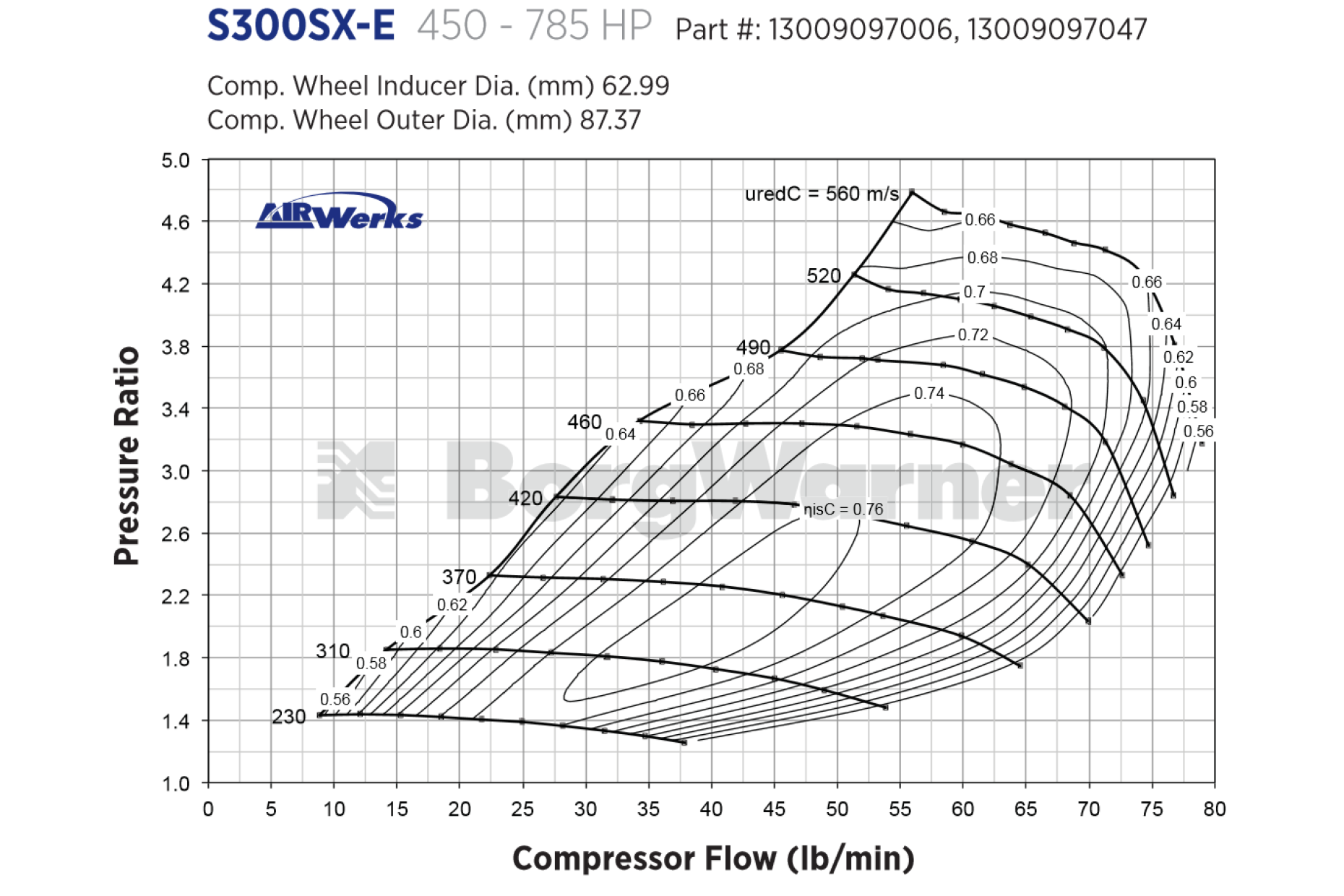

Compressor

• Compressor-wheel inducer: 62.99 mm / 2.48 inches
• Compressor-wheel outside diameter: 87.37 mm / 3.44 inches
• Compressor-wheel construction: Forged and milled aluminum

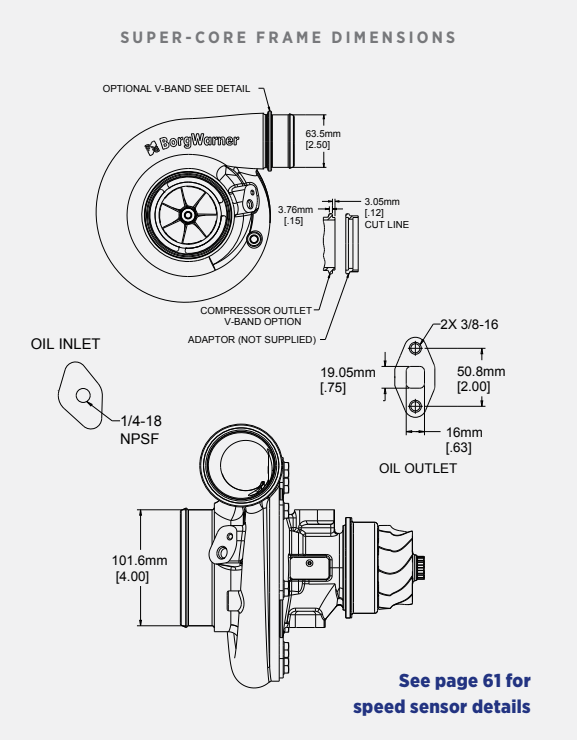

• Compressor inlet: 101.6 mm / 4.00 inches
• Compressor outlet: 63.5 mm / 2.50 inches
• Compressor outlet style: Hose connection as supplied
• Optional compressor-outlet configuration: Machinable for a compatible V-band adapter
• Compressor-speed-sensor provision: Integrated port
• Boost-reference provision: Pre-machined compressor-cover port

Turbine

• Turbine-wheel outside diameter: 76.20 mm / 3.00 inches
• Turbine-wheel exducer: 67.56 mm / 2.66 inches
• Compatible turbine-housing family: BorgWarner 76/68 mm S300
• Turbine inlet options: T4 open flow or divided T4 twin flow
• Turbine outlet: 4.21-inch Marmon-style connection
• Wastegate configuration: External wastegate required

Bearing Housing and Oil Connections

• Bearing system: Twin hydrodynamic journal bearings
• Thrust bearing: 360-degree
• Oil inlet thread: 1/4-18 NPSF
• Oil-drain mounting: Two 3/8-16 threaded holes
• BorgWarner service-kit part number: 13007110005

Available Turbine Housings

• 177210 — 0.88 A/R, T4 open-flow inlet, 4.21-inch Marmon-style outlet, external wastegate
• 177207 — 0.91 A/R, divided T4 twin-flow inlet, 4.21-inch Marmon-style outlet, external wastegate
• 177209 — 1.00 A/R, divided T4 twin-flow inlet, 4.21-inch Marmon-style outlet, external wastegate
• Supercore Only — No turbine housing

Application Notes

• The 0.88 A/R open-flow housing is the recommended default for conventional non-divided exhaust manifolds.
• The 0.91 and 1.00 A/R twin-flow housings are intended for divided manifolds that maintain exhaust-pulse separation.
• A divided turbine housing should not be selected solely on the assumption that twin-scroll construction is inherently superior.
• All listed turbine housings are non-wastegated and require an appropriately sized external wastegate.
• Every housed variant uses BorgWarner supercore part number 13009097006.
• The compressor-speed sensor is not included.
• The turbine-outlet flange and clamp are not included.
• The optional compressor-outlet V-band adapter is not included.
• Oil-feed fittings, oil-feed line, oil-drain fitting, and oil-drain line are not included.
• External wastegate, wastegate springs, boost-control plumbing, and electronic boost-control components are not included.
• Compressor-inlet plumbing, charge piping, exhaust manifold, downpipe, gaskets, and application-specific installation hardware are not included.
• This is a universal performance turbocharger package and is not supplied as a vehicle-specific installation kit.
• Turbocharger sizing should account for engine displacement, airflow demand, intended boost pressure, engine-speed range, exhaust-manifold design, fuel, and response objectives.

Emissions and Competition-Use Notice

Unless specifically identified as emissions-legal for the applicable vehicle and application, this product is intended for sanctioned competition, off-road, or other non-emissions-controlled use. Installation or use on an emissions-controlled vehicle operated on public roads may violate federal, state, or local law. The purchaser and installer are responsible for confirming and maintaining compliance with all applicable emissions and vehicle-use regulations.
